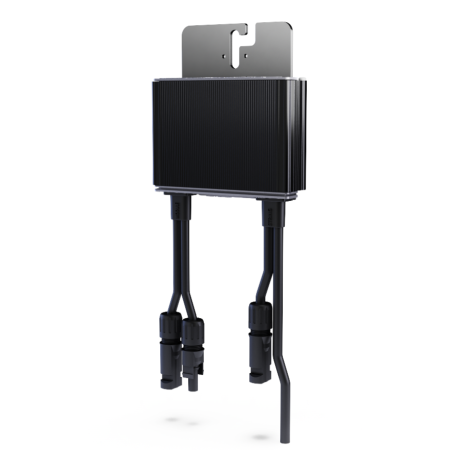

SolarEdge S650B Optimizer 650W Voc 85V
SolarEdge S650B-1GM4MBM power optimizer: the flagship model of the residential S series, for one photovoltaic module up to 650 W nominal.
Maximum input voltage 85 Vdc, MPPT 12,5-85 V, 99,5% efficiency, 15 A output current, 2,3 m output cable, curved bracket, IP68 rating, and 1 V safety voltage. 25-year warranty.
The SolarEdge S650B power optimizer (code S650B-1GM4MBM) is the largest model in the residential S series: it manages a single photovoltaic module up to 650 W nominal, the power class of TOPCon and back contact modules in 132-cell format that is currently most common in new installations.
Designed for today's high-power modules
Until a few years ago, a 440-500 W optimizer covered the entire residential market. With today's 580-650 Wp modules, that size is no longer enough: the SolarEdge rule is that the module's STC power must not exceed the optimizer's rated input power, with an allowed tolerance of up to +5%. The S650B is the answer to this shift and allows latest-generation modules to be optimized without downsizing the photovoltaic field.
The voltage window is intermediate between the two lower models: maximum Voc 85 Vdc and MPPT 12,5-85 V, with output up to 80 V. It therefore comfortably covers modules in 132-cell format with nameplate Voc around 50-52 V, even considering the winter increase at the minimum design temperature. For modules with even higher Voc, there is the S500B, which reaches 125 V but stops at 500 W nominal (650 W on installations after April 1, 2024).
SolarEdge S650B technical specifications
| Rated DC input power | 650 W |
| Maximum absolute input voltage (Voc) | 85 Vdc |
| MPPT operating range | 12,5 – 85 Vdc |
| Maximum continuous input current | 15 A |
| Maximum Isc of the connected module | 16,5 A with Home Hub inverter — 15 A with other SolarEdge inverters |
| Maximum / weighted efficiency | 99,5% / 98,6% |
| Maximum output current / voltage | 15 A / 80 Vdc |
| Standby safety voltage | 1 ± 0,1 Vdc per optimizer |
| Maximum system voltage | 1000 Vdc |
| String length (single-phase inverter) | Minimum 6 — maximum 25 optimizers |
| Connectors and cables | MC4 — input 0,1 m, output (+) 2,3 m / (−) 0,1 m |
| Dimensions (W × H × D) | 129 × 165 × 45 mm (curved bracket) |
| Weight | 790 g |
| Protection rating | IP68 — relative humidity 0-100% |
| Operating temperature | -40 °C / +85 °C |
| Compliance | IEC 62109-1 class II, IEC 61000-6-2/6-3, CISPR 11, EN 55011, UL 94 V-0, RoHS |
| Fire safety | VDE-AR-E 2100-712:2018-12 |
| Warranty | 25 years |
The 2,3-meter cable changes the installation site
The 2,3 m positive output cable compared with the 0,1 m negative cable is not an aesthetic detail: it is the wiring choice of the S series, designed to connect optimizers placed on different rows without extensions and without running the cable around the entire perimeter of the array. It reduces connection points, and every connection eliminated is one less potential insulation fault. Fastening is done with a single bolt on the module frame.
Frequently asked questions
Can I use the S650B with a 700 W module?
No. The module's STC power must not exceed the optimizer's 650 W nominal rating, with a module power tolerance allowed up to +5%. Modules of 700 W and above normally belong to the commercial and industrial segment, for which SolarEdge offers a different range of optimizers. The Isc must also be checked, as it must remain within 16,5 A with Home Hub inverters and 15 A with the others.
What is the difference between S650B and S500B?
They are optimized for different needs. The S650B prioritizes power: 650 W nominal with maximum Voc 85 V. The S500B prioritizes voltage: up to 125 V Voc, with rated power of 500 W rising to 650 W only for installations after April 1, 2024. If your constraint is a very powerful module, choose the S650B; if it is a module with high open-circuit voltage, choose the S500B.
How many optimizers are needed per string?
With SolarEdge Home Wave or Home Hub single-phase inverters, the string ranges from 6 to 25 optimizers. On three-phase Short String inverters, the minimum is 8 with a maximum of 20; on 230/400 V three-phase inverters, at least 14 optimizers are required up to a maximum of 50. Parallel strings of different lengths and orientations are allowed on the same inverter input.
Should the optimizer be mounted under the module or on the structure?
The -1GM4MBM version has a curved bracket and is designed for direct fastening to the module frame with a single bolt. The IP68 rating and the -40 °C to +85 °C range allow outdoor installation without additional protection. Allowing air to circulate behind the module still helps keep operating temperatures low and avoid temporary power reductions on the hottest days.
Does the 25-year warranty also cover replacement labor?
No, the 25-year manufacturer's warranty covers the product, not the replacement work on the roof. This is an aspect to clarify with the end customer during the quotation stage, because on a pitched-roof system the access cost may exceed the value of the component. Monitoring at individual module level helps ensure a single intervention on the right part, identifying exactly which optimizer is faulty.
