Three-Phase 10 kW PV AC Panel QACT10

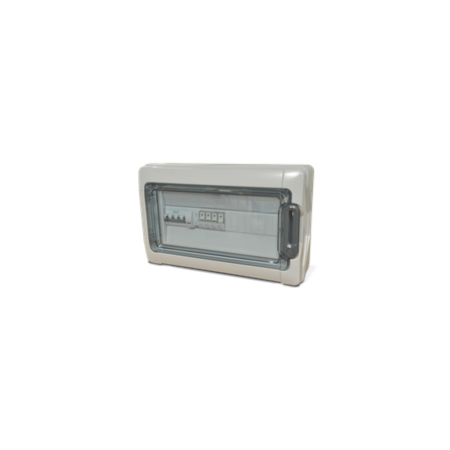

SecSun QACT10: AC panel for PV systems with one three-phase inverter up to 11 kWp. It contains a 4x20 A RCBO (6 kA, 300 mA type A) and a three-phase class II surge arrester rated 20 kA.

No interface protection: for use where the inverter's built-in protection is accepted, as in Italy up to 11.08 kW. PVC enclosure IP65 class II, 448 x 282 x 141 mm, compliant with CEI EN 61439-1/2.

€442.18 Tax escl.

The SecSun QACT10 is the AC panel for PV systems with a single three-phase inverter up to 11 kWp. One IP65 box holds the protections between the inverter output and the main distribution board: a four-pole RCBO (circuit breaker with residual current block) and a three-phase surge arrester.

An AC panel, not an interface panel

The QACT10 does not include interface protection: no SPI relay, no interface device. In Italy, CEI 0-21 accepts the protection built into the inverter up to 11.08 kW, which is exactly the threshold this panel is sized for; in Germany, VDE-AR-N 4105 accepts integrated protection up to 30 kVA. A 10 kW three-phase system with a certified inverter can therefore be connected with the QACT10 alone. If the inverter power exceeds the local threshold, or if a second inverter is added later, an interface panel with external protection relay and test report is needed: consider this at design stage, because a later extension can make this panel insufficient.

QACT10 technical specifications

System powerUp to 11 kWp
Inverter1 three-phase
RCBO4x20 A, breaking capacity 6 kA, 300 mA type A
Surge arresterThree-phase, class II, Imax 20 kA, with its own protection
Interface protectionNot included
EnclosureThermoplastic PVC, IP65, insulation class II
ConformityCEI EN 61439-1/2, with wiring diagram
Dimensions (W x H x D)448 x 282 x 141 mm

Why 20 A per phase is enough

A 10 kW three-phase inverter at 400 V delivers about 14.5 A per phase, an 11 kW one about 16 A: the 20 A breaker covers the rated current without nuisance tripping during peak production, even with the panel warmed by the sun. The 6 kW version, QACT6, uses a 16 A breaker instead. Before ordering, check the maximum output current in the inverter datasheet: some 10 kW models reach 16-17 A per phase, still within the margin.

The residual current device is type A with a 300 mA threshold, compatible with transformerless inverters that guarantee no DC fault currents above 6 mA. If the inverter manual requires a type B device, that requirement takes precedence.

When a surge arrester on the AC side pays off

The three-phase arrester protects the inverter from overvoltages coming from the grid: lightning on overhead lines, switching by the network operator, disturbances from large nearby loads. On warehouses and farms supplied by overhead lines it is the protection that most often saves the inverter's power board.

Frequently asked questions

What is the difference between QACT10 and QACT10L?

SecSun datasheets list the same protection equipment (4x20 A type A and 20 kA class II arrester) and the same dimensions for both. The QACT10 belongs to the Pro range, the QACT10L to the Light range: price and availability are usually what decides.

Can I use it with two inverters?

No, it is designed for one three-phase inverter. Two inverters need two separately protected lines and, in Italy above 11.08 kW in total, an external interface protection too.

Is it suitable for a hybrid inverter with battery?

Yes, on the line towards the grid. Any backup output of the inverter must be protected by a separate circuit.

Does it also protect the PV modules?

No, it works on the AC side only. The DC side needs a DC combiner box, unless the DC switch and arresters are already integrated in the inverter.

Can it be installed outdoors?

Yes, the box is IP65 and double insulated. A shaded position next to the inverter is still recommended: heat reduces the current rating of the breakers, and the unprotected cable run stays short.
