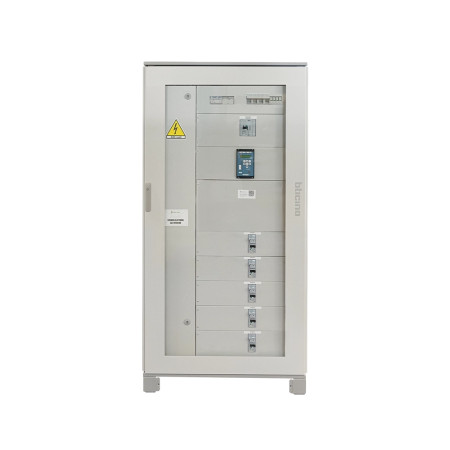

QIT500-5 500 kW PV Interface Panel

SecSun QIT500-5: low-voltage-side interface panel for 500 kWp PV plants connected to the Italian medium-voltage grid, with 5 three-phase inverter lines, interface relay compliant with CEI 0-16 and GSM modem for remote disconnection.

4x800 A main switch, 4P 860 A AC3 contactor as interface device, 5 adjustable 4x200 A RCBOs, class II SPD. Metal enclosure IP65, 1200 x 2232 x 725 mm. Supplied with bench test report.

€20,931.24 Tax escl.

The SecSun QIT500-5 is the interface panel for 500 kWp photovoltaic plants split across five three-phase inverters. A single metal cabinet houses the five inverter output lines, the interface protection required by the Italian CEI 0-16 standard, the interface device and the remote disconnection modem. The QIT500-5 version comes with a bench test report of the relay.

Built for Italian medium-voltage connections

This panel is designed around Italian grid rules. In Italy, producers connect in low voltage under CEI 0-21 up to about 100 kW; a 500 kW plant connects in medium voltage and falls under CEI 0-16, which requires different protection thresholds and logic plus remote disconnection by the grid operator (AEEGSI resolution 421/2014, for MV plants of 100 kW and above). A panel designed for CEI 0-21 cannot be used, even if its current rating is right. Outside Italy, relay settings and remote trip are defined by the local grid operator: check compatibility before ordering.

What the panel does and what stays outside it

The QIT500-5 provides the interface protection system on the low-voltage side: the CEI 0-16 interface relay drives the 4P 860 A contactor, which disconnects the whole generating plant from the grid when voltage or frequency go out of limits or when the operator sends a remote trip command.

It does not replace the delivery substation: the main switching device with its general protection, the MV/LV transformer and the related breakers are separate components, to be designed and quoted separately. Relay settings must follow the grid operator's operating rules.

QIT500-5 technical specifications

Plant power500 kWp
Inverter lines5 three-phase inverters
Main switch-disconnector4x800 A with 230 Vac shunt trip (back-up command)
Interface device4P contactor 860 A in AC3
Interface relayCompliant with CEI 0-16
Remote disconnectionGSM modem compliant with CEI 0-16 and AEEGSI resolution 421/2014
Inverter line protection5 adjustable 4x200 A RCBOs, 36 kA
Surge protectionThree-phase, class II, Imax 20 kA, protected by 32 A fuses
Auxiliary circuits10 A fuse disconnectors (auxiliaries and relay voltage sensing)
Terminal blockNumbered cable input and output
EnclosureMetal, IP65, class I
ConformityCEI EN 61439-1/2
Dimensions (W x H x D)1200 x 2232 x 725 mm
Test reportIncluded (bench test of the relay)

Sizing: the numbers add up, but recheck them on your design

At 400 V three-phase, 500 kW means about 720 A: the 800 A switch and the 860 A AC3 contactor leave a reasonable margin. Each inverter line is protected by an adjustable 200 A RCBO, suitable for inverters up to about 100 kW per line. If the design uses different inverter sizes or a number of lines other than five, the settings must be checked with the designer before ordering: below 100 kW per line you simply adjust the threshold, above it you need a different panel.

The cabinet is over 2.2 metres tall and 72.5 cm deep: plan the space in the substation or technical room, with free front access for maintenance and periodic relay checks.

Frequently asked questions

Can it be used on a low-voltage connection?

No. The relay complies with CEI 0-16 and the panel is designed for medium-voltage connections. Low-voltage plants in Italy need a CEI 0-21 interface panel, such as the smaller QIT models.

What is the difference between QIT500-5 and QIT500-5-ST?

The components are the same. The QIT500-5 comes with a bench test report of the interface relay, to be attached to the documentation for the grid operator; the ST version does not, and the test must be carried out on site with a relay test set.

Is remote disconnection mandatory?

In Italy, for generating plants connected in medium voltage with a power of 100 kW or more, yes: resolution 421/2014 allows the grid operator to disconnect the plant remotely. The built-in GSM modem receives the command and passes it to the interface protection. A SIM with adequate coverage at the installation site is required.

Does it replace the general protection of the substation?

No. The general protection and the main switching device stay in the delivery substation, on the medium-voltage side. The QIT500-5 only handles the interface function of the generating plant.

Can it be installed outdoors?

The metal enclosure is IP65, so it withstands dust and water jets. For a cabinet of this size with protection electronics, a technical room or a canopy is still preferable: direct sunlight and high temperatures shorten the life of the relay and modem.
