UBM2102L | PV AC/DC Electrical Panel – MR WATT
UBM2102L | PV AC/DC Electrical Panel – MR WATT — electrical protection or combiner panel. Check the model, rated values and system compatibility before ordering.

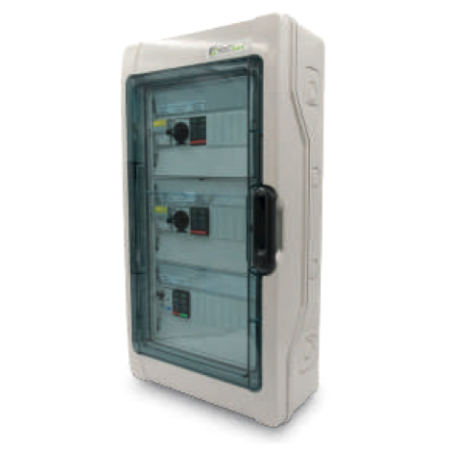

UBM2102L is an AC/DC electrical panel for photovoltaic systems with integrated protections, string management, and an IP65 protection rating, ideal for residential and commercial systems with three-phase/single-phase inverters.
What is UBM2102L | PV AC/DC Electrical Panel – MR WATT used for?
UBM2102L | PV AC/DC Electrical Panel – MR WATT organises and protects the electrical section for which it is designed. In a photovoltaic installation, isolation, overcurrent and surge protection, together with clear circuit identification, support safe maintenance. The configuration must match the actual voltage, current and number of strings.
Specifications and checks for UBM2102L | PV AC/DC Electrical Panel – MR WATT
| Product | UBM2102L | PV AC/DC Electrical Panel – MR WATT |
| Product type | electrical protection or combiner panel |
| Rated values shown in the listing | 6kW, 600Vdc, 16 A |
| Dimensions | 16.1 × 62.2 × 43.2 cm |
| Weight | 5 kg |
| Installation | Qualified technician |
Compatibility and installation
Before purchasing UBM2102L | PV AC/DC Electrical Panel – MR WATT, compare the exact model, rated electrical values, connections and any communication protocol with the rest of the system. A matching brand alone does not guarantee compatibility. Sizing, wiring and commissioning must follow the manufacturer's documentation and the rules applicable at the installation site.
This page identifies the UBM2102L | PV AC/DC Electrical Panel – MR WATT variant. Power, voltage, current, number of strings, accessories and firmware may differ between products that look similar. Check the complete model designation before ordering and provide MR WATT with the details of the installed equipment whenever compatibility is uncertain.
Frequently asked questions
How do I confirm that this is the correct variant?
Compare the complete name of UBM2102L | PV AC/DC Electrical Panel – MR WATT, model designation, rated values and connectors with the design documents or the unit being replaced. Do not rely only on appearance or brand.
Who should install the product?
A qualified professional should install UBM2102L | PV AC/DC Electrical Panel – MR WATT in accordance with the manufacturer's instructions. Tightening torques, protective devices, polarity, configuration and coordination with the existing system must be checked before commissioning.
Can it be installed outdoors?
Only when the manufacturer's declared protection rating and the environmental conditions of the site allow it. Ventilation, temperature limits, clearances and protection from direct sunlight must still follow the installation manual.
What should I check before ordering?
Check single-phase or three-phase supply, voltage, current, power, interfaces, space and required accessories. For UBM2102L | PV AC/DC Electrical Panel – MR WATT, sending MR WATT a photo of the rating label or the system diagram helps prevent an incorrect order.
What should be inspected on delivery?
Check that the packaging, model and supplied items for UBM2102L | PV AC/DC Electrical Panel – MR WATT match the order and show no visible damage. Keep the manual and documents, and do not energise equipment with damaged enclosures or connectors.
