150 Wp 12V Camper Solar Kit PWM 10A CAMP150B
CAMP150B 150 Wp 12V camper solar kit with a rigid polycrystalline panel and an EP210 10 A PWM controller for the leisure and starter batteries.
It includes 10 m of 4 mm² solar cable with MC4 connectors, four corner mounts, two side mounts and a two-way waterproof ABS roof gland.
The CAMP150B is a complete 150 Wp solar kit for motorhomes and campervans with a 12 V leisure system. Its 36-cell polycrystalline panel feeds the EP Solar EP210 10 A PWM controller, which manages two batteries so the leisure battery can be charged while the starter battery receives maintenance charging.
CAMP150B kit specifications
| Solar power | 150 Wp |
| Panel system voltage | 12 V nominal |
| Panel type | Rigid polycrystalline, 36 cells |
| Controller | EP Solar EP210 REGDUO, PWM, 10 A, 12/24 V |
| Battery outputs | Leisure and starter batteries |
| Solar cable | 10 m total, 5 m red plus 5 m black, 4 mm², prewired MC4 |
| Mounting set | 4 ABS corner mounts and 2 side mounts |
| Roof entry | Two-way waterproof ABS cable gland |
150 Wp polycrystalline panel details
| Rated power | 150 Wp |
| Current at maximum power | 8.52 A |
| Open-circuit voltage | 21.2 V |
| Short-circuit current | 9.20 A |
| Cells | 36 |
| Dimensions | 147.5 x 67 x 3.5 cm |
| Panel weight | 11.6 kg |
| Construction | Tempered glass, EVA encapsulation, weather-resistant backsheet and bypass diodes |
| Declared standards | IEC 61215, IEC 61730 and TÜV; ISO 9001 production |
EP210 dual-battery PWM controller
The EP210 lets the installer set the charging priority between the leisure and starter batteries from the front controls. It supports the optional MT-1 remote display, which is not included.
| Charge technology | PWM |
| Rated current | 10 A |
| Battery voltage | 12/24 V |
| Maximum panel voltage | 30 V |
| Maximum PV power | 175 Wp at 12 V; 350 Wp at 24 V |
| Supported batteries | Flooded lead-acid, AGM and GEL |
| Controller size | 15.3 x 7.6 x 3.7 cm |
| Controller weight | 0.2 kg |
Lithium and LiFePO4 compatibility is not declared for the EP210. A lithium battery requires a compatible charging profile or written technical confirmation before connection.

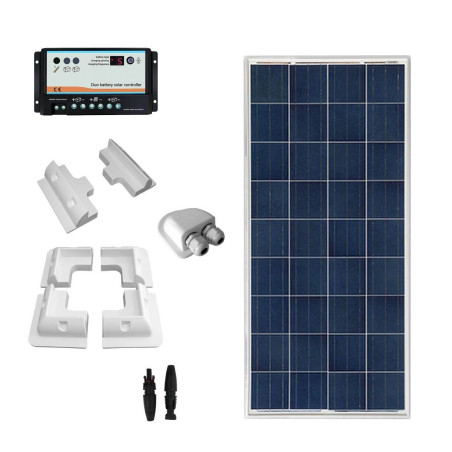

What is included?
- 1 rigid 150 Wp 12 V polycrystalline solar panel
- 1 EP Solar EP210 10 A PWM dual-battery controller
- 4 ABS corner mounts and 2 side mounts
- 10 m of 4 mm² photovoltaic cable with prewired MC4 connectors
- 1 two-way waterproof ABS roof gland
Batteries, 230 V inverter, fuses, isolators, structural adhesive and MT-1 display are not listed as included.
Expected daily energy
Four equivalent peak-sun hours give a theoretical 600 Wh. With an illustrative 20-25% allowance for system losses, roughly 450-480 Wh may reach the battery, equivalent to about 35-40 Ah at 12 V. Shade, heat, panel angle and battery state reduce output.
| Example load | Indicative energy |
| 10 W LED lighting for 5 hours | 50 Wh |
| Four 15 Wh phone charges | 60 Wh |
| 50 W water pump for 30 minutes | 25 Wh |
| 60 W laptop for 2 hours | 120 Wh |
Installation checks
- Allow more than 147.5 x 67 cm of unshaded roof area.
- Use mounting and sealing products suitable for the roof construction.
- Install the controller in a dry, ventilated position near the batteries.
- Size fuses, isolators and battery cables for the installation.
- Follow the EP210 manual for connection order, polarity and charging settings.
Frequently asked questions
Which controller is supplied with the CAMP150B?
The kit uses the EP Solar EP210 REGDUO, a 10 A PWM controller for 12/24 V systems with two battery outputs and adjustable charging priority.
Can it charge LiFePO4 batteries?
LiFePO4 is not included in the declared EP210 battery profiles. Use a lithium-compatible controller or obtain specific technical approval before connection.
Is the 150 Wp panel correctly sized for the 10 A controller?
Yes for the declared 12 V configuration. The controller accepts up to 175 Wp at 12 V and the panel delivers 8.52 A at maximum power.
Are roof cables and mounts included?
Yes. The kit includes 10 m of 4 mm² solar cable with MC4 connectors, six ABS mounts and a two-way waterproof roof gland. Adhesive and electrical protection are not listed.
How large and heavy is the panel?
The panel measures 147.5 x 67 x 3.5 cm and weighs 11.6 kg. Roof load capacity and space for mounts must be checked before installation.
