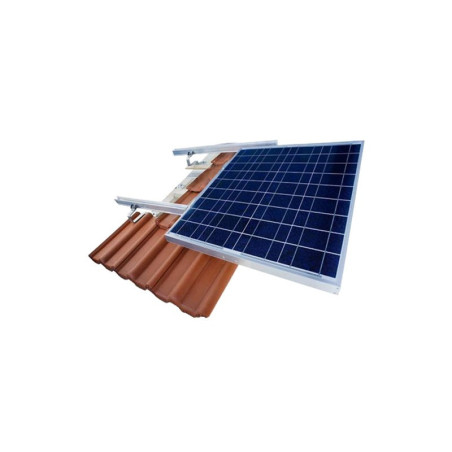

Roof mount for 6 solar panels - max 650cm
Anodized aluminium mounting kit for pitched tile roofs. The rails, for a total of 650cm, hold 6 panels up to 105cm wide, or 9 panels of 67cm (with 2 additional central clamps to specify at order time).
This pitched roof mounting kit is designed to install long rows of solar panels on sloped roofs with tiles, no ballast required: it's fixed to the roof deck using hooks, for a lightweight system that also works on surfaces that aren't perfectly flat.
Two possible configurations
The 4 rails of 325cm each (650cm total, joined by 2 connecting joints) are designed for two configurations: 6 solar panels up to 105cm wide each, or 9 narrower panels (up to 67cm). For the 9-panel configuration, please specify at order time, as it requires 2 additional central clamps for intermediate support.
How mounting on tile roofs works
The aluminium hooks slide under the tiles and are fixed to the roof deck (battens or rafters) with self-tapping screws not included. Once the tile is repositioned, just enough of the hook remains exposed to attach the rails on which the panel is mounted, either vertically or horizontally depending on preference.
Technical specifications
| Product code | ST-F-6MFV |
| Type | Pitched roof mounting kit (tiles) |
| Panels supported | 6 panels (max width 105cm) or 9 panels (max width 67cm) |
| Panel orientation | Vertical or horizontal |
| Material | Anodized aluminium |
| Compatible surfaces | Pitched tile roofs, including uneven surfaces |
| Package contents | 4 aluminium rails 325cm each (650cm total), 2 connecting joints, 4 end clamps, 4 central clamps, 8 tile roof hooks, assorted hardware |
| Weight | 10 kg |
| Package dimensions | 100 x 60 x 30 cm |
What's included
- 4 aluminium rails, 325cm long each (650cm total)
- 2 connecting joints between the rails
- 4 end clamps for solar panel fixing
- 4 central clamps for solar panel fixing
- 8 tile roof hooks
- Assorted hardware kit
Frequently asked questions
Can I mount 9 panels instead of 6 on this kit?
Yes, if the panels are up to 67cm wide each. In this case, please specify it at order time, as 2 additional central clamps are needed for intermediate module support.
Given the 650cm length, is professional installation recommended?
Yes. With a weight of 10 kg and an overall length of 650cm across 4 rails joined together, installation by qualified personnel is recommended to ensure correct and secure fixing along the entire length of the system.
What are the 2 connecting joints for?
The joints connect the 4 rails of 325cm into a single continuous 650cm line, ensuring structural continuity and alignment along the entire row of panels.
Can I mount the panels both vertically and horizontally?
Yes, the rails let you orient the solar panels either vertically (portrait) or horizontally (landscape), depending on aesthetic preferences or available roof space.
Does it work on roofs that aren't perfectly flat?
Yes, the hook and rail system is designed to adapt to irregular or uneven surfaces, common on pitched roofs with tiles.
