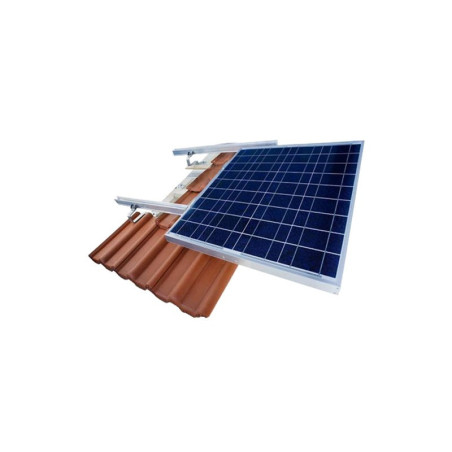

Roof support for 3 solar panels - max 325cm
Anodized aluminium mounting kit for pitched tile roofs. The 325cm rails hold 3 panels up to 105cm wide, or 4 panels of 67cm (with 2 additional central clamps to specify at order time).
This pitched roof mounting kit is designed to install solar panels on sloped roofs with tiles, no ballast required: it's fixed to the roof deck using hooks, for a lightweight system that also works on surfaces that aren't perfectly flat.
Two possible configurations
The 325cm rails are designed for two configurations: 3 solar panels up to 105cm wide each, or 4 narrower panels (up to 67cm). For the 4-panel configuration, please specify at order time, as it requires 2 additional central clamps for intermediate support.
How mounting on tile roofs works
The aluminium hooks slide under the tiles and are fixed to the roof deck (battens or rafters) with self-tapping screws not included. Once the tile is repositioned, just enough of the hook remains exposed to attach the rails on which the panel is mounted, either vertically or horizontally depending on preference.
Technical specifications
| Product code | ST-F-3MFV |
| Type | Pitched roof mounting kit (tiles) |
| Panels supported | 3 panels (max width 105cm) or 4 panels (max width 67cm) |
| Panel orientation | Vertical or horizontal |
| Material | Anodized aluminium |
| Compatible surfaces | Pitched tile roofs, including uneven surfaces |
| Package contents | 2 aluminium rails (325cm), 4 end clamps, 4 central clamps, 4 tile roof hooks, assorted hardware |
| Weight | 3 kg |
| Package dimensions | 100 x 60 x 30 cm |
What's included
- 2 aluminium rails, 325cm long
- 4 end clamps for solar panel fixing
- 4 central clamps for solar panel fixing
- 4 tile roof hooks
Frequently asked questions
Can I mount 4 panels instead of 3 on this kit?
Yes, if the panels are up to 67cm wide each. In this case, please specify it at order time, as 2 additional central clamps are needed for intermediate module support.
How does it differ from the 2-panel version?
Compared to the 2-panel kit (220cm rails, 2 central clamps), this kit has 325cm rails and includes 4 central clamps to support the two junction points between the three panels.
Can I mount the panels both vertically and horizontally?
Yes, the 325cm rails let you orient the solar panels either vertically (portrait) or horizontally (landscape), depending on aesthetic preferences or available roof space.
Are extra screws needed for installation?
Yes, fixing the 4 hooks to the roof deck (battens or rafters) requires self-tapping screws not included in the package, to be chosen based on your roof structure.
Does it work on roofs that aren't perfectly flat?
Yes, the hook and rail system is designed to adapt to irregular or uneven surfaces, common on pitched roofs with tiles.
