45° support structure for 6 photovoltaic modules on a roof
3mm anodized aluminium structure to mount 6 solar panels side by side (max combined width 630cm) at a fixed 45° tilt. Suitable for flat roofs with ground ballast anchoring or vertical wall mounting.
Planning a row of modules on a flat roof or wall? This 45° structure combines rails, triangular supports and clamps in one coordinated system, avoiding improvised component pairings.
Before ordering, compare the total width and frame thickness. Anchors or ballast must be sized for the substrate, wind and snow loads by a qualified technician.
This 45° support structure in 3mm anodized aluminium is designed to mount 6 solar panels side by side (maximum combined width 630 cm) on a flat roof or via vertical wall mounting, canopy-style. The fixed 45° tilt guarantees good energy yield even without an optimally oriented roof.
What this structure is for

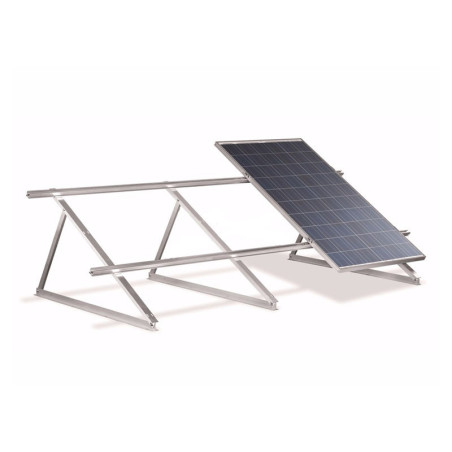

The system is ballasted directly on a flat roof, avoiding the need to drill through the waterproofing membrane, or it can be fixed directly to a vertical wall, for example to create a small solar canopy. Five triangular trestles support the entire row of panels at a fixed 45° tilt, distributing the weight across multiple support points given the considerable length of the structure.
Technical specifications
| Product code | SUPP-6MFV |
| Type | Flat roof or wall mounting structure |
| Panels supported | 6 solar panels (max combined width 630 cm) |
| Tilt | Fixed 45° |
| Material | Anodized aluminium, 3mm thick |
| Compatible surfaces | Flat roof (ground ballast) or vertical wall |
| Package contents | 5 triangular trestles at 45°, 4 horizontal cross rails (325cm) with 2 connecting joints, 4 end clamps, 10 central clamps, mounting hardware |
| Weight | 55 kg |
| Package dimensions | 200 x 140 x 80 cm |
What's included
- 5 triangular trestles with 45° tilt
- 4 horizontal cross rails, 325cm, with 2 connecting joints
- 4 end fixing clamps
- 10 central fixing clamps
- Complete mounting hardware
Frequently asked questions
What's the maximum combined width of the 6 panels supported?
The structure is sized for 6 side-by-side solar panels with a combined width of up to 630 cm. For wider panels, please contact us to check compatibility.
Given the size and weight, is professional installation required?
At 55 kg and over 6 metres long, we recommend at least two people for assembly, and a qualified installer if you have no prior experience with solar mounting systems.
Can I install it on a flat roof without drilling the membrane?
Yes, the structure is designed for ground ballast anchoring, avoiding any drilling into the roof's waterproofing membrane. Alternatively, it can be fixed vertically to a wall.
What's included in the package?
The kit includes 5 triangular trestles at 45°, 4 horizontal cross rails (325cm) with 2 connecting joints, 4 end fixing clamps, 10 central fixing clamps and complete mounting hardware. Ground ballasts are not included.
Why does it have as many as 5 triangular trestles?
With a row of 6 panels over 6 metres long, more intermediate support points are needed to distribute the weight and prevent the rails from flexing, ensuring stability along the entire length of the structure.
