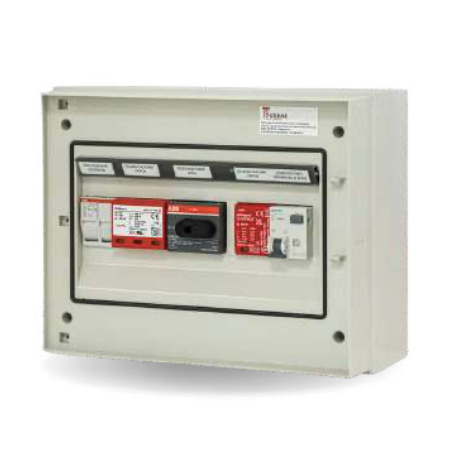

Total Box DC/AC Single-phase Panel TBMF 1/1 600V
Total Box TBMF 1/1 600V panel: a combined solution integrating DC-side and AC-side protection of a single-phase photovoltaic system rated up to 600 Vdc. It includes a 600V 25A load-break isolator, a Type 2 SPD surge arrester, a 1000V fuse holder base with 16/20A gPV fuses and a 16A single-phase class A residual current circuit breaker. IP65 enclosure with 24 DIN modules, compliant with the Italian CEI 0-21, CEI EN 61439 and CEI 64-8 standards.
The Total Box TBMF 1/1 600V panel by Icierre is a combined enclosure bringing together all the protections a single-phase photovoltaic system with one string up to 600 Vdc needs: it safely manages both the photovoltaic module strings (DC side) and the connection to the grid (AC side), reducing footprint and wiring time.
Why do you need a Total Box string panel?
Every photovoltaic system must be protected against overcurrents, surges and insulation faults, and must be capable of being safely isolated for maintenance. The Total Box TBMF 1/1 600V integrates all these devices in a single certified panel, in compliance with the Italian CEI 0-21, CEI EN 61439 and CEI 64-8 standards, avoiding the assembly of loose components and ensuring system continuity and reliability.
TBMF 1/1 600V technical specifications
| Configuration | Single-phase — 1 IN / 1 OUT |
| Max DC voltage | 600 Vdc |
| Number of strings | 1 |
| DC isolation | 600V 25A load-break isolator |
| DC protection | Type 2 SPD surge arrester 600V + 1000V 32A fuse holder base with 16/20A gPV fuses |
| AC protection | Single-phase RCBO 16A curve C, 300mA class A |
| AC-side SPD | 230V Type 2 surge arrester |
| Connections | Pre-wired input/output terminal blocks |
| Enclosure | IP65 box, 24 DIN modules, component identification labels |
| Standards | CEI 0-21, CEI EN 61439, CEI 64-8 (Italian standards) |
When is the Total Box TBMF 1/1 600V used?
It is the right choice for single-phase photovoltaic systems with a single string and open-circuit voltage within 600 Vdc, typically small residential installations or systems with low input voltage inverters. If the string operates above 600 Vdc, the TBMF 1/1 1000V version is required; for two independent strings, see the TBMF 2/2 600V.
What is included
- Total Box TBMF 1/1 600V panel in an IP65 24-module enclosure, pre-wired and certified
- 600V load-break isolator, Type 2 SPD and fuse holder with gPV fuses on the DC side
- Residual current circuit breaker and 230V SPD on the AC side
- Input/output terminal blocks and component identification labels on plastic-coated rails
Frequently asked questions
What is the difference between the TBMF 1/1 600V and the TBMF 1/1 1000V?
The maximum DC voltage differs: the 600V model uses an isolator and surge arrester rated for 600 Vdc, the 1000V model for 1000 Vdc. The choice depends on the open-circuit voltage of the string at the minimum design temperature: above 600 V the 1000V version is required.
Is the TBMF 1/1 600V panel pre-wired or do I have to assemble it?
It arrives already wired and certified: isolator, SPD, fuse holders and residual current breaker are mounted and connected to the input and output terminal blocks. It only needs to be wall-mounted and connected to the PV string and to the AC line.
What does the DC side of this panel protect?
The DC side integrates a 600V 25A load-break isolator to safely open the string, a Type 2 SPD surge arrester against indirect lightning strikes and a 1000V fuse holder base with 16/20A gPV fuses against reverse overcurrents.
What protection is provided on the AC side?
The AC side features a single-phase 16A curve C residual current circuit breaker rated 300mA class A, suitable for the DC component of photovoltaic inverters, plus a 230V Type 2 SPD protecting the line towards the inverter and the grid.
Which documents are needed for the grid connection?
The connection application to the network operator normally requires the single-line diagram, the declaration of conformity and the rating data of the installed protections. Being a certified panel with labelled components, the Total Box simplifies this paperwork.
