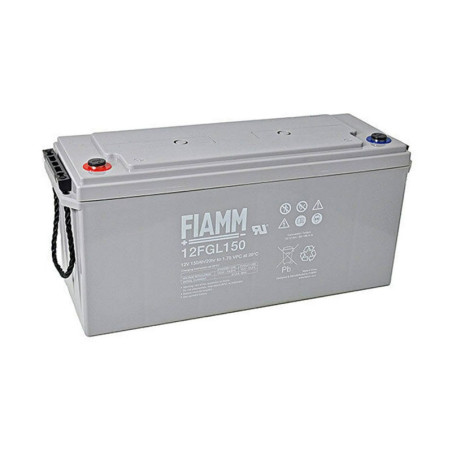

FIAMM AGM 150Ah battery for photovoltaic solar panels
The FGL series batteries are designed to offer excellent performance with all discharge profiles. The FGL range uses VRLA technology with 99% internal recombination, which means that no maintenance is required for electrolyte topping up during their operational life. The self-discharge rate of less than 2% per month ensures long storage times without recharging. The FGL range is designed for applications that require a high level of reliability and safety, and they are suitable for use in combination with a 12V photovoltaic system.
The AGM batteries from the FGL series are ideal for mobile and fixed applications such as: - Energy storage systems for renewable energy - Emergency lights and Light signaling - Security & alarm systems - Industrial & process continuity - UPS applications - Light traction (electric bicycles and electric scooters) TECHNICAL SPECIFICATIONS Capacity: 150Ah Nominal Voltage: 12V Weight: 46.2 Kg Dimensions (mm): 483 x 170 x 220 (Width x Depth x Height) Terminals: M8 hole GENERAL CHARACTERISTICS Optimized for discharges up to 20 hours 5-year design life in buffer at controlled room temperature VRLA AGM and gas recombination technology, with 99% of internal gases recombined Maintenance-free; no topping up Not hazardous for transportation by air/sea/rail/road 100% Recyclable TECHNICAL AND CONSTRUCTIVE FEATURES Grids: obtained by gravity casting with highly pure lead-calcium-tin alloy Separators: electrolyte fully absorbed in ultra-high microporosity glass fiber separators (AGM) Terminal connections: threaded inserts ensuring high conductivity and easy installation Polar seals: high reliability polar pass-throughs, specially designed to prevent acid leaks over a wide temperature range Unidirectional safety valves: allow excess gases to escape in case of overcharge Flame arrestor device: prevents the entry of sparks or flames into the battery Container and lid: designed with thick ABS walls for high mechanical strength Self-discharge: < 2% per month at 20°C, allows 6 months of storage without recharge USAGE AND INSTALLATION PRECAUTIONS - Install batteries away from any kind of heat source and flames - Install batteries in non-humid locations and protect them from potential surface deposits - Do not install batteries in hermetically sealed environments or very close to open flames or sparks as gases may be emitted - When mounting multiple batteries, it is preferable to leave space between them to provide cooling and ventilation - When charging with a power charger, the current ripple must be less than 0.1A R.M.S. - Do not use gasoline, diesel, or other types of solvent for cleaning the containers - In the event of internal acid leaks due to casing breakage, avoid contact with hands as sulfuric acid is present inside - In case of contact, wash hands thoroughly with water and be extremely cautious with eyes - Do not connect batteries of different capacities or significantly different "production ages" in series or parallel - Periodically check for wear and/or cleanliness - Do not dispose of batteries with household waste but return them to a recycling center Reference Standards - IEC 60896 Part 21 - test methods for valve-regulated batteries (VRLA) - IEC 60896 Part 22 - requirements for VRLA - UL Certified - Eurobat 3-5 years commercial standard FIAMM Certifications - ISO 9001 Quality Management System - ISO 14001 Environmental Management System - OHSAS 18001 - Occupational Health and Safety
