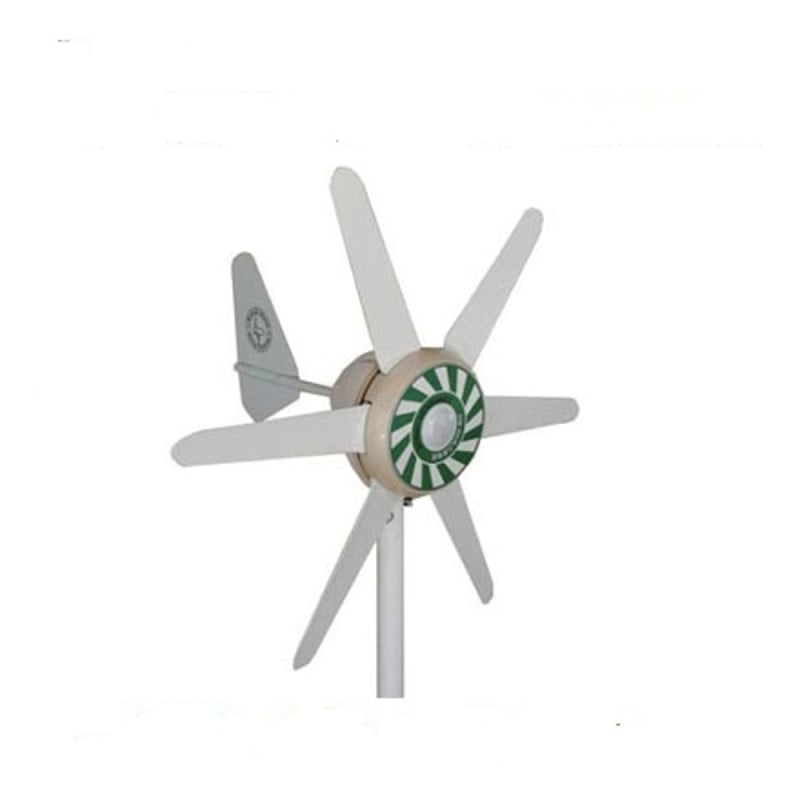

High-performance 90W M-300 12V micro wind generator with integrated regulator

The M-300 12V micro wind generator is designed for those who need clean energy in locations where the power grid does not reach. With a rated power of 90W and an output voltage of 12V DC, it integrates perfectly with any off-grid system or 12V battery — even in parallel with an existing photovoltaic system.

Start-up with minimal wind

One of the most appreciated features of the M-300 is its exceptionally low start-up speed: just 1.5 m/s, equivalent to about 5 km/h. This means the generator begins producing energy even with a light breeze, maximizing production hours throughout the year. The maximum operating wind speed is 25 m/s, ensuring robustness even in strong wind conditions.

Integrated charge controller — no accessories needed

The M-300-12 includes a charge controller already integrated into the machine body. There is no need to purchase or install external components: simply connect it directly to the 12V battery. The controller automatically manages charging, protecting the battery from overcharging. It can be connected in parallel to the batteries of a 12V off-grid photovoltaic system, creating a more reliable and continuous solar+wind hybrid system.

Lightweight aluminum construction

The machine body is made of aluminum, a lightweight material, resistant to corrosion, and with excellent heat dissipation. The 6 plastic blades have a diameter of 82 cm and an aerodynamic profile optimized to maximize wind capture at low speeds. The low weight (10.5 kg) makes installation on a pole, roof, or boat mast easy, even without special equipment.

Typical applications

The M-300 12V micro wind generator is ideal for:

• Off-grid systems — homes, cabins, shelters, and remote locations not connected to the grid
• Campers and caravans — charging service batteries while parked or on the move
• Marine use — sailboats and motorboats, installation on mast or stern arch
• Solar+wind street lighting — supplements panels during nighttime or cloudy hours
• Remote radio links and video surveillance — continuous power supply for equipment in isolated areas
• Environmental monitoring — weather stations, wildfire detection, off-grid IoT sensors

Technical specifications

• Rated power: 90 W
• Rated voltage: 12V DC
• Minimum wind speed (cut-in): 1.5 m/s
• Maximum wind speed (cut-out): 25 m/s
• Number of blades: 6 (plastic)
• Rotor diameter: 82 cm
• Body: aluminum
• Charge controller: integrated
• Weight: 10.5 kg
• Packing dimensions: 47 × 41 × 33 cm
