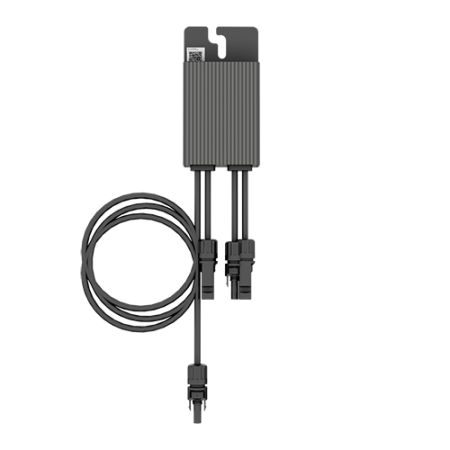

Huawei 600W MERC-600W-PA0 Optimizer
Huawei MERC-600W-PA0: power optimizer (Smart PV Module Controller) for modules up to 720 Wp (600 W rated input power), with independent MPPT per panel.
MPPT range 10-80 V, max Isc 16 A, peak efficiency 99.5% (weighted 99.0%), IP68. Includes rapid shutdown to 1 V per optimizer and module-level monitoring in the FusionSolar portal. 73.8 x 145 x 27.2 mm, 0.65 kg.
The Huawei MERC-600W-PA0 is a Smart PV Optimizer that manages a single photovoltaic module up to 720 Wp (600 W rated input power), tracking its maximum power point independently of the rest of the string. It mounts directly on the panel frame and talks to the Huawei SUN2000 inverter over the DC line, with no extra wiring.
When you really need an optimizer
Not on every system. An optimizer pays off when there is real mismatch between modules: shading from chimneys, trees or nearby buildings, roof faces with different orientations or tilts, modules of uneven power in an extension. In those conditions it recovers a significant share of the output an unoptimized string would lose. There is a second reason too, independent of yield: rapid shutdown. If the fire brigade has to intervene or during maintenance, each optimizer brings its output to 1 V, effectively removing the dangerous voltage on the roof.
MERC-600W-PA0 technical specifications
| Rated input power | 600 W |
| Max PV module power | 720 Wp |
| Absolute maximum input voltage | 80 V |
| MPPT voltage range | 10 - 80 V |
| Max short-circuit current (Isc) | 16 A |
| Max / weighted efficiency | 99.5% / 99.0% |
| Max output voltage | 80 V |
| Max output current | 16 A |
| Bypass output | Yes |
| Safety voltage per optimizer | 1 V (rapid shutdown) |
| Protection rating | IP68 |
| Operating temperature | -40 / +85 °C |
| Overvoltage category | II |
| Dimensions (W x H x D) | 73.8 x 145 x 27.2 mm |
| Weight | 0.65 kg |
| Mounting | On the module frame or on an aluminium rail |
| Monitoring | Module-level on the FusionSolar portal and app |
Compatible Huawei inverters
- SUN2000-2/6KTL-L1 and SUN2000-3/10KTL-M1
- SUN2000-3/6K-LB0 and SUN5000-3/6K-LB0
- SUN2000-5/12K-MAP0 and SUN5000-8/12K-MAP0
- SUN2000-12/25K-MB0 and SUN5000-17/25K-MB0
The MERC-600W-PA0 cannot be combined in the same string with the MERC-1100W-P and MERC-1300W-P models: they are families with a different communication architecture.
Frequently asked questions
Do I have to put an optimizer on every panel?
No. The MERC-600W-PA0 supports partial optimization: you can install it only on the modules actually penalised (for example those shaded by the chimney or on a secondary roof face) and leave the others connected directly. It is the cheapest way to solve a localised problem without optimizing the whole array.
Which modules is it compatible with?
With any module whose STC power does not exceed 720 Wp (the optimizer's rated input power is 600 W), with Voc within 80 V and Isc within 16 A. That covers virtually all residential and commercial modules from 400 to 720 Wp with 54, 96 or 108 cells.
How much output does it actually recover?
It depends entirely on the mismatch present. On a clean, well-exposed and shade-free system the gain is marginal and does not justify the cost. On systems with recurring shading or multiple roof faces Huawei states system yield increases between 5% and 30%: the high end applies to cases of severe shading.
What is rapid shutdown and why does it matter?
It is the function that, when the inverter shuts down or on an alarm, brings each optimizer's output to 1 V. A string of 20 modules that without optimizers would stay at about 800 V thus drops to a few tens of volts. It is the decisive argument for roofs where the fire brigade might have to intervene and for safe maintenance of the array.
What happens if the optimizer overheats or fails?
Between 70 and 85 °C operating temperature the device may stop for over-temperature protection and restart automatically as the temperature falls, without damage. In case of failure, the bypass output maintains the electrical continuity of the string: the system keeps producing and the affected module is flagged on FusionSolar.
