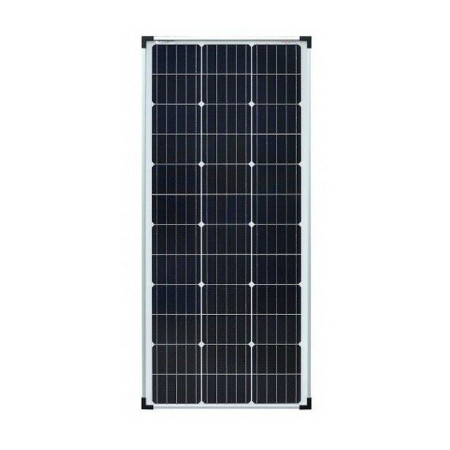

Ultrapower 170W 24V Monocrystalline Solar Panel MADE IN ITALY - Dimensions 133x66.5cm

Photovoltaic modules are made with high-efficiency monocrystalline silicon cells.

The photovoltaic module is of the glass-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology, fully MADE IN ITALY.

The cells are vacuum encapsulated between two EVA sheets and protected with a high-transparency tempered glass plate on the front and a white tedlar sheet on the back.

The entire unit is enclosed by a 35mm anodized aluminum frame with high resistance.

SYM series modules are made with 4mm low-iron tempered glass with a textured surface, to ensure maximum performance even in mobile applications such as campers or boating where modules are often installed with non-ideal tilt and azimuth.

ELECTRICAL CHARACTERISTICS:

Maximum Power (Pmax) 170 Wp

Short Circuit Current (Isc) 4.90 A

Open Circuit Voltage (Voc) 41.50 V

MPP Current (Imax) 4.65 A

MPP Voltage (Vmax) 36.60 V

Insulation Voltage 600 Volts

NOCT (800W/m2-20°C - AM 1.5) 47°C

PHYSICAL CHARACTERISTICS:

Dimensions (mm) 1300 x 665 x 35

Weight 11.4 Kg

CONSTRUCTION CHARACTERISTICS:

Module production location Italy

Cell type Monocrystalline

Number of cells 64

Front side 4 mm tempered glass

Back side Multilayer tedlar

Encapsulation EVA

Frame Anodized aluminum

Junction Box IP65-2 bypass diodes
