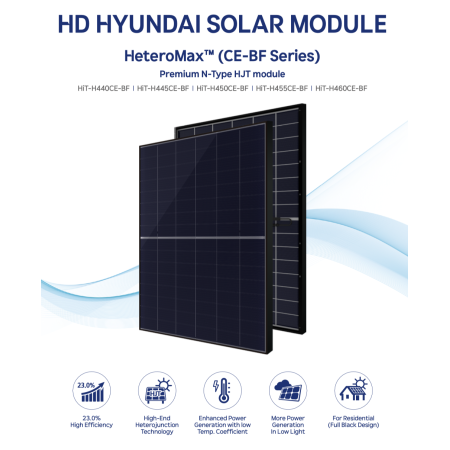

HIT-H460CE-BF

The Hyundai HiT-H460CE-BF is the 460 Wp photovoltaic module from Hyundai Energy Solutions’ Heteromax CE-BF series, based on N-Type HJT (Heterojunction Technology) with a bifacial structure and black frame. With an efficiency of 23.0% and the lowest temperature coefficient in its class (−0.24%/°C), it is one of the highest-performing solutions available in the standard size of 1762×1134×30 mm — the same as traditional modules, making it the ideal candidate for revamping existing systems.

HJT N-Type Technology — Why It’s Superior to TOPCon and PERC

HJT (Heterojunction) technology combines amorphous and crystalline silicon layers to achieve tangible advantages over competing technologies:

• No LID degradation — N-Type cells completely eliminate Light-Induced Degradation typical of boron silicon, guaranteeing nominal power from day one of operation
• Temperature coefficient −0.24%/°C — the lowest among commercial technologies. In summer, with modules at 70°C, HJT loses about 10% less power compared to a standard PERC module (−0.35%/°C)
• Excellent low-irradiance performance — HJT cells produce more efficiently during morning, evening, and cloudy days thanks to excellent absorption of diffuse light
• Natural symmetric bifacial structure — HJT cells are inherently symmetric, ensuring bifaciality above 90% without design compromises

Bifaciality >90% — Energy Also from the Rear

The bifacial structure with bifaciality above 90% allows the module to capture light reflected from the ground or underlying surfaces, generating 2% to 4% additional energy compared to the front side alone under typical installation conditions. The gain varies depending on the type of surface (light gravel, white surfaces, snow) and the tilt angle.

Ideal Design for Revamping

The 1762 × 1134 × 30 mm dimensions match those of previous-generation 60-cell modules. This allows you to replace old 250–300W panels with 460W modules on the same existing mounting structures, nearly doubling the installed power for the same occupied area, without modifying rails or clamps. The black frame with a 30 mm profile integrates perfectly into standard structures.

Double Glass and Zero Bus Bar — Durability and Reliability

The module uses:

• Double tempered glass — eliminates degradation of the plastic backsheet from humidity, vapor, and UV rays, which is especially important in coastal or high-humidity environments
• TCO film — a transparent conductive oxide layer that improves current collection on HJT cells
• Zero Bus Bar (ZBB) — no visible metallic bus bars on the cells, reducing internal shading and increasing the active surface area
• Compatible connectors: MC4 / MC4-Evo2 / PV-H4 / Z4S-abcd / ST4

30-Year Product and Performance Warranty

Hyundai Energy Solutions guarantees:

• 30-year product warranty — coverage against material and workmanship defects for the entire operational life of the system
• 30-year linear performance warranty with a minimum guaranteed yield of 99% in the first year, with extremely low annual degradation

Full Technical Specifications

• Model: HiT-H460CE-BF
• Series: Heteromax CE-BF
• Manufacturer: Hyundai Energy Solutions
• Nominal power (STC): 460 Wp
• Cell technology: N-Type HJT (Heterojunction) monocrystalline
• Module efficiency: 23.0%
• Open-circuit voltage (Voc): 37.05 V
• Short-circuit current (Isc): 17.66 A
• Voltage at maximum power point (Vmpp): 31.16 V
• Current at maximum power point (Impp): 16.56 A
• Temperature coefficient (Pmax): −0.24%/°C
• Structure: bifacial
• Bifaciality: > 90%
• Typical bifacial gain: +2% ÷ +4%
• Module rear: double tempered glass
• Frame: black anodized aluminum
• Connector: MC4 / MC4-Evo2 / PV-H4 / Z4S-abcd / ST4
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 21.8 kg
• Product warranty: 30 years
• Performance warranty: 30-year linear (99% in the first year)
• Applications: residential, commercial, revamping
