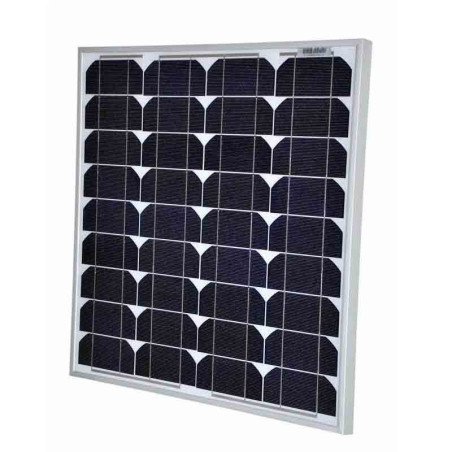

40W 12V Monocrystalline Solar Panel
Lightweight and compact panel, this photovoltaic module can be used to power 1 or 2 light points, courtesy lights, signs or road warning beacons, or as a charge maintenance system to avoid the problem of self-discharge of camper and boat batteries during long periods of vehicle inactivity.
The photovoltaic module is of the glass-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology, completely MADE IN ITALY.
The SYM series modules are made with 4mm low-iron tempered glass and a textured surface, to ensure maximum performance even in mobile applications such as campers or marine settings where the modules are often installed with non-ideal tilt and azimuth.
The cells are vacuum encapsulated between two sheets of EVA and protected with a high-transparency tempered glass sheet on the front and a white tedlar sheet on the back.
Everything is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 40 Wp
Short Circuit Current (Isc) 2.65A
Open Circuit Voltage (Voc) 19.8 V
MPP Current (Imax) 2.50 A
MPP Voltage (Vmax) 16.20 V
Insulation Voltage 600 Volt
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 450 x 665 x 35
Weight 6.3 Kg
CONSTRUCTION CHARACTERISTICS:
Module production location Italy
Cell type Monocrystalline
Number of cells 32
Front side 4 mm tempered glass
Back side Multilayer tedlar
Encapsulation EVA
Frame Anodized aluminum
Junction Box IP65-2 bypass diodes
