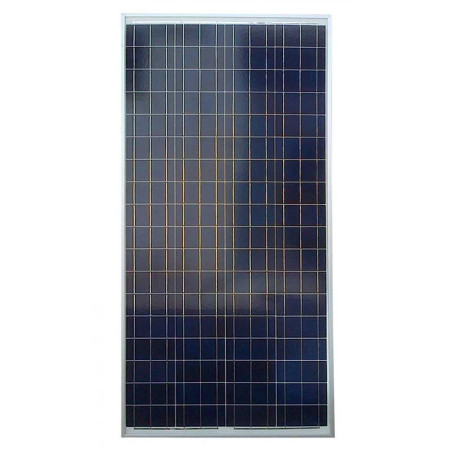

165W 24V Polycrystalline Photovoltaic Panel

Photovoltaic modules are made with high-efficiency polycrystalline silicon cells.

The photovoltaic module is of the glass-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology, completely MADE IN ITALY.

The cells are encapsulated under vacuum between two sheets of EVA and protected with a sheet of high-transparency tempered glass on the front and a white tedlar sheet on the back.

The entire unit is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.

The SYM series modules are made with 4mm low-iron content textured surface tempered glass to ensure maximum performance even in mobile applications such as campers or marine environments where the modules are often installed with non-ideal tilt and azimuth.

ELECTRICAL CHARACTERISTICS:

Maximum Power (Pmax) 165 Wp

Short Circuit Current (Isc) 4.46 A

Open Circuit Voltage (Voc) 46.50 V

MPP Current (Imax) 4.23 A

MPP Voltage (Vmax) 39.00 V

Insulation Voltage 600 Volt

NOCT (800W/m2-20°C - AM 1.5) 47°C

PHYSICAL CHARACTERISTICS:

Dimensions (mm) 1500 x 665 x 35

Weight 13.0 Kg

CONSTRUCTIVE CHARACTERISTICS:

Module production location Italy

Cell type Polycrystalline

Number of cells 72

Front side 4 mm tempered glass

Back side Multilayer tedlar

Encapsulation EVA

Frame Anodized aluminum

Junction Box IP65-2 bypass diodes
