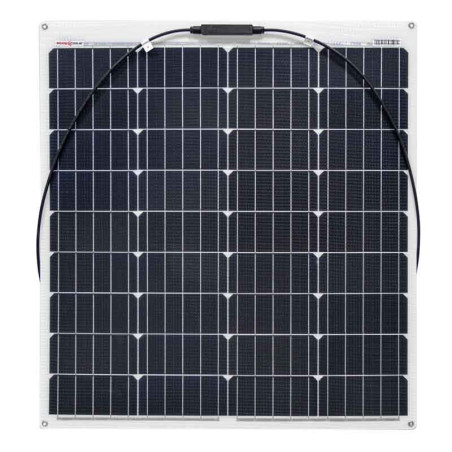

Flexible solar panel for boat 80W 12V size 78x68cm
The FLEX80M12V photovoltaic module is equipped with a high level of efficiency.
This series is particularly suitable for all applications where the available space for installation is limited (such as campers and boats) but still allows for high production capacity.
The photovoltaic modules are made with high-efficiency monocrystalline silicon cells.
The photovoltaic module is of the ETFE-tedlar type, the result of a careful selection of the best materials available on the market and advanced processing technology, entirely MADE IN ITALY.
The cells are encapsulated under vacuum between two sheets of EVA with an upper layer of a plastic polymer called ETFE, highly resistant to corrosion and damage from atmospheric agents, such that it can be defined as self-healing.
The FLEX series modules are designed to ensure maximum performance even in mobile applications such as campers or nautical (ETFE), where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax)80 Wp
Short Circuit Current (Isc)4.28 A
Open Circuit Voltage (Voc)23.5 V
MPP Current (Imax)4.04 A
MPP Voltage (Vmax)19.8 V
Insulation Voltage600 Volts
NOCT (800W/m2-20°C - AM 1.5)47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm)780 x 680 x 2
Weight 2.2 Kg
CONSTRUCTION CHARACTERISTICS:
Module production locationItaly
Type of cellsMonocrystalline
Number of cells32
Front side (Front)Transparent ETFE
Back side (Rear)Multilayer Tedlar
EncapsulationEVA
FrameAbsent
Junction BoxIP65-2 bypass diodes on the front
