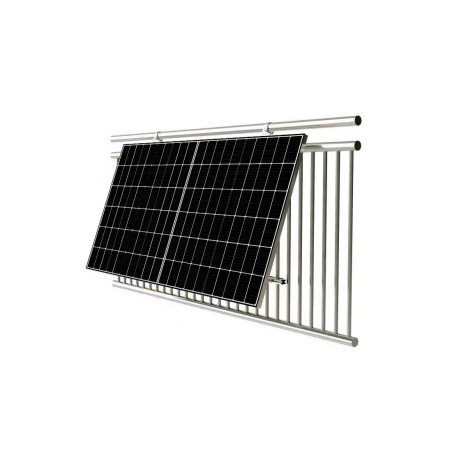

Universal balcony support set for photovoltaic panels
Universal SZ-3022 kit to mount a solar panel on a balcony, railing or parapet without drilling. Includes curved brackets and adjustable supports for vertical or tilted (up to 30°) installation, ready in minutes.
Want to mount a solar panel on a balcony without improvising brackets and tilt? This set provides the supports needed for a tidy installation on an iron railing.
Before ordering, check the module dimensions, railing geometry and wind loads: the specifications below explain configurations, included parts and operating limits.
This universal balcony solar panel mount is designed for anyone who wants to install a solar panel on a balcony, railing or parapet without drilling into the existing structure. It's one of the most common solutions for plug and play systems (balcony solar / balcony power plants), which are becoming increasingly popular thanks to recent regulatory simplifications for micro-systems up to 800W: before installing, we recommend checking your building's regulations and your local grid operator's requirements.
What this kit is for
The set hooks the panel at the top using curved brackets that clip onto the handrail or windowsill, while at the bottom two adjustable supports let you choose between a flush fit against the railing or a tilt of up to 30°. It's mainly designed for iron railings; for solid concrete parapets the structure can be adapted using wall anchors (not included).
Technical specifications
| Product code | SZ-3022 |
| Type | Balcony/railing mounting kit |
| Panels supported | 1 solar panel |
| Tilt | Vertical or tilted up to 30° |
| Compatible surfaces | Iron railings (adaptable to concrete parapets) |
| Package contents | 2 curved brackets, 2 adjustable lower supports, clamps, nuts and screws |
| Weight | 3 kg |
| Package dimensions | 100 x 50 x 10 cm |
What's included
- 2 curved brackets for hooking onto the handrail or windowsill at the top
- 2 lower supports for flush or tilted, adjustable fixing
- Locking clamps, nuts and mounting screws
Frequently asked questions
Do I need to drill into my balcony to mount the panel?
No, the kit is designed to hook directly onto iron railings using the included curved brackets, without any drilling. Only for solid concrete parapets might wall anchors be needed (not included in the package).
What type of railing can this mount be installed on?
The set is mainly designed for iron railings with a handrail or windowsill to hook the upper curved brackets onto. It can also be adapted to concrete parapets, evaluating the most suitable fixing method case by case.
What's the maximum adjustable tilt?
The lower supports let you install the panel vertically or with an adjustable tilt of up to 30°, to optimise solar exposure based on your balcony's orientation.
Does the kit include all the hardware needed for installation?
Yes, the package includes 2 curved brackets, 2 adjustable lower supports, locking clamps, nuts and screws. Wall anchors for fixing to concrete parapets are not included.
Is it also suitable for plug and play (balcony) solar systems?
Yes, it's one of the most widely used mounting solutions for balcony plug and play systems. Always check your building regulations and your local grid operator's requirements before installing.
