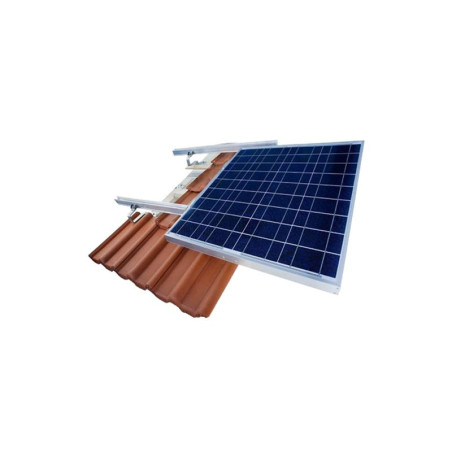

Pitched roof mounting support for 1 photovoltaic module
Anodized aluminium mounting kit for 1 solar panel on a pitched tile roof, panel width up to 115cm. Lightweight, adapts to uneven surfaces, vertical or horizontal installation.
This pitched roof mounting kit is designed to install 1 solar panel (up to 115 cm wide) on sloped roofs with tiles. Unlike flat-roof structures, it doesn't require ballast: it's fixed to the roof deck using hooks, resulting in a lighter system that also works on surfaces that aren't perfectly flat.
How mounting on tile roofs works
The aluminium hooks slide under the tiles and are fixed to the roof deck (battens or rafters) with self-tapping screws not included. Once the tile is repositioned, just enough of the hook remains exposed to attach the rails on which the panel is mounted, either vertically or horizontally depending on preference.
Technical specifications
| Product code | ST-F-1MFV |
| Type | Pitched roof mounting kit (tiles) |
| Panels supported | 1 solar panel (max width 115 cm) |
| Panel orientation | Vertical or horizontal |
| Material | Anodized aluminium |
| Compatible surfaces | Pitched tile roofs, including uneven surfaces |
| Package contents | 2 aluminium rails (120cm), 4 end clamps, 4 tile roof hooks, assorted hardware |
| Weight | 3 kg |
| Package dimensions | 80 x 50 x 20 cm |
What's included
- 2 aluminium rails, 120cm long
- 4 end clamps for solar panel fixing
- 4 tile roof hooks
- Assorted hardware kit
Frequently asked questions
What's the maximum panel width this kit supports?
The system is compatible with solar panels up to 115 cm wide. For wider panels, please contact us to check compatibility.
How is it different from a flat roof structure?
Flat roof structures are ballasted directly on the ground, while this kit is fixed to the roof deck with hooks under the tiles: it's lighter (3 kg versus 2-10 kg+ for ballasted structures) and specifically designed for pitched roofs.
Can I mount the panel both vertically and horizontally?
Yes, the 120cm rails let you orient the solar panel either vertically (portrait) or horizontally (landscape), depending on aesthetic preferences or the available space on the roof.
Are extra screws needed for installation?
Yes, fixing the 4 hooks to the roof deck (battens or rafters) requires self-tapping screws not included in the package, to be chosen based on your roof structure.
Does it work on roofs that aren't perfectly flat?
Yes, the hook and rail system is designed to adapt to irregular or uneven surfaces, common on pitched roofs with tiles.
