45° support structure for photovoltaic module on roof
3mm anodized aluminium structure to mount 1 solar panel (max width 105cm) at a fixed 45° tilt. Suitable for flat roofs with ground ballast anchoring or vertical wall mounting.
Need to install 1 solar module on a flat roof or wall at a fixed 45° tilt? This aluminium structure provides a coordinated base for a neat panel layout.
Check the combined module width first and have anchors or ballast sized for the substrate, wind and snow loads. The details below cover dimensions, components and kit compatibility.

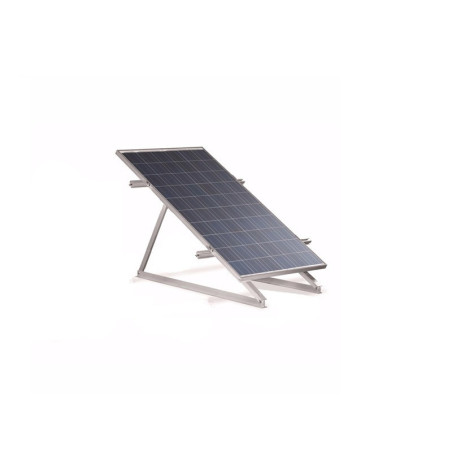

This 45° support structure in 3mm anodized aluminium is designed to mount 1 solar panel (maximum width 105 cm) on a flat roof or via vertical wall mounting, canopy-style. The fixed 45° tilt guarantees good energy yield even without an optimally oriented roof.
What this structure is for
The system is ballasted directly on a flat roof, avoiding the need to drill through the waterproofing membrane, or it can be fixed directly to a vertical wall, for example to create a small solar canopy. Two triangular trestles hold the panel at a fixed 45° tilt, a value that delivers good performance in most installations.
Technical specifications
| Product code | SUPP-1MFV |
| Type | Flat roof or wall mounting structure |
| Panels supported | 1 solar panel (max width 105 cm) |
| Tilt | Fixed 45° |
| Material | Anodized aluminium, 3mm thick |
| Compatible surfaces | Flat roof (ground ballast) or vertical wall |
| Package contents | 2 triangular trestles at 45°, 2 horizontal cross rails (110cm), 4 end clamps, mounting hardware |
| Weight | 2 kg |
| Package dimensions | 50 x 30 x 3 cm |
What's included
- 2 triangular trestles with 45° tilt
- 2 horizontal cross rails, 110cm
- 4 end fixing clamps
- Complete mounting hardware
Frequently asked questions
What's the maximum panel width this structure supports?
The structure is sized for solar panels with a total width of up to 105 cm. For wider panels, please contact us to check compatibility.
Can I install it on a flat roof without drilling the membrane?
Yes, the structure is designed for ground ballast anchoring, avoiding any drilling into the roof's waterproofing membrane. Alternatively, it can be fixed vertically to a wall.
Is it also suitable for wall mounting, canopy-style?
Yes, besides flat roof installation, the structure can be fixed vertically to a wall, for example to create a small solar canopy.
What's included in the package?
The kit includes 2 triangular trestles at 45°, 2 horizontal cross rails (110cm), 4 end fixing clamps and complete mounting hardware. Ground ballasts are not included.
Is it compatible with any solar panel?
It's compatible with most standard solar panels up to 105 cm wide. Always check your panel's dimensions before purchasing.
