Schottky Diodes in Photovoltaics: Operation and Applications

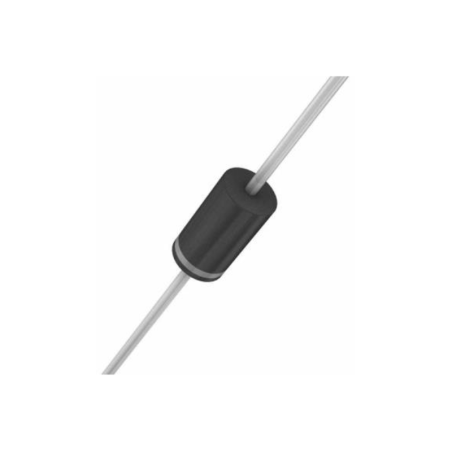

“What is a Schottky Diode?”

The Schottky diode is an electronic component that uses a metal-semiconductor junction instead of a traditional P-N junction. This technology provides it with:

• Low forward voltage drop (0.15V - 0.45V, compared to 0.7V in traditional diodes).
• Low power dissipation, reducing energy losses.
• High response speed, ideal for direct current systems like photovoltaics.

“Applications of Schottky Diodes in Photovoltaic Systems”

🔹 Blocking Diodes in Solar Panels

Schottky diodes are used as blocking diodes to prevent reverse current flow. This happens when a panel is shaded or damaged, preventing it from drawing energy from other modules and reducing the system's efficiency.

🔹 Bypass Diodes for Shading Protection

In photovoltaic panels, bypass diodes are inserted in junction boxes to create alternative paths for current in case of shading, preventing energy losses and the risk of overheating (hot spots).

“Advantages of Using Schottky Diodes in Photovoltaics”

• 🔋 Better efficiency of the solar system thanks to lower voltage drop.
• 🌞 Shading protection, avoiding losses in energy production.
• 🔥 Less overheating, reducing the risk of damage to solar panels.
• 🔌 Better performance in off-grid systems with solar batteries.

“How to Choose the Right Schottky Diode?”

To select the most suitable Schottky diode, you need to consider:

• 📏 Maximum reverse voltage (VRRM): higher than the panel's voltage (e.g., 45V for a 36V module).
• ⚡ Rated current (IF): equal to or greater than the current generated by the panels (e.g., 10A for a 250W panel).
• 🔽 Low forward voltage drop (VF): below 0.5V to maximize efficiency.

“Conclusion”

Schottky diodes are essential components in photovoltaic systems, used both to prevent energy losses and to protect solar panels. Their correct selection and installation can significantly improve the efficiency, lifespan, and safety of the system.
