3PH 8.8KTL-V3

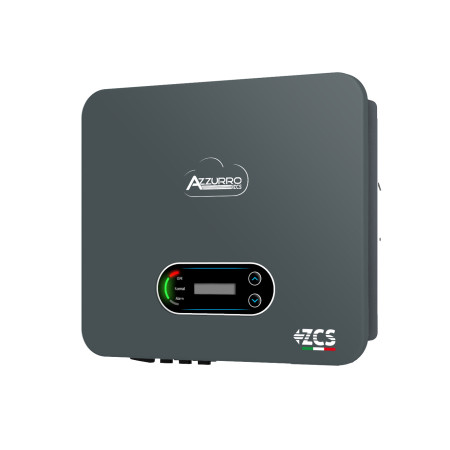

ZCS Azzurro 3PH 8.8KTL-V3: 8 kW three-phase string inverter with two independent MPPTs, 1,100 V maximum DC input, integrated DC switch, IP65 enclosure and fanless natural-convection cooling.
The ZCS Azzurro 3PH 8.8KTL-V3 is an 8 kW three-phase string inverter designed for residential three-phase systems and small commercial photovoltaic installations. Its transformerless architecture, two independent MPPT trackers and wide operating voltage range make it suitable for roofs with two different orientations or strings with different electrical conditions.
Technical features
- 8,000 W nominal three-phase output and up to 8,800 VA apparent power.
- Two independent MPPT trackers, 140-1,000 V tracking range, 160 V start-up voltage and 1,100 V maximum DC input.
- Maximum efficiency up to 98.5%, European efficiency 98% and MPPT efficiency above 99.9%.
- Integrated DC switch, internal interface protection and Type 2 surge protection on both DC and AC sides.
- IP65 enclosure, fanless natural-convection cooling, operating temperature from -30 to +60 °C and noise below 40 dB.
- RS485, USB and Bluetooth communication; Wi-Fi, Ethernet or 4G connectivity can be added with optional accessories.
The inverter supports adjustable export limitation when connected to the dedicated meter or Azzurro HUB. Natural cooling removes moving fan components and reduces maintenance, while night consumption remains below 1 W. The unit weighs 18 kg and is supplied with a 10-year warranty. String sizing must always respect the maximum voltage, current and power limits stated in the installation manual for the exact hardware revision.
