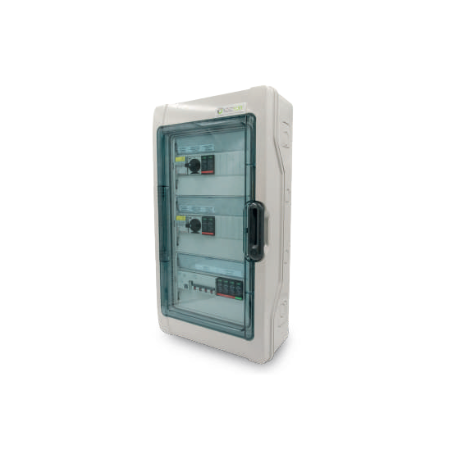

PV AC/DC Combiner Panel Three-Phase 10kW 2 Strings UBT2102L
UBT2102L three-phase AC/DC combiner box, 10 kW, 2 independent strings at 1000 VDC. Integrated protections (MCBs, RCDs, surge arresters), IP65. 340 × 622 × 161 mm.
The UBT2102L is a three-phase AC/DC combiner box, 10 kW, with 2 independent strings at 1000 VDC, from the Unico Box Light range. It combines DC-side and AC-side protections in a single box to connect PV modules and the inverter to the grid safely and tidily.
What is the UBT2102L for?
It works as a string combiner with AC/DC protections: it integrates thermal-magnetic breakers, residual-current devices and surge arresters, ensuring safety and compliance. With 2 independent strings it suits three-phase systems up to 10 kW.
UBT2102L technical specifications
| Type | Three-phase AC/DC panel (combiner box) |
| Power | 10 kW three-phase |
| Strings | 2 independent |
| DC voltage | 1000 VDC |
| Protections | MCBs, RCDs, surge arresters |
| Protection rating | IP65 (indoor/outdoor) |
| Dimensions | 340 × 622 × 161 mm |
FAQ
Is it for single-phase or three-phase systems?
It is a three-phase 10 kW panel. For single-phase systems there are the UBM models of the same range.
Does it include both AC and DC protections?
Yes. It integrates protections on both the AC and DC sides (MCBs, RCDs, surge arresters) for a safe, compliant connection.
Can it be installed outdoors?
Yes. The IP65 rating allows both indoor and outdoor installation, protected from dust and water jets. Installation must be carried out by qualified personnel.
