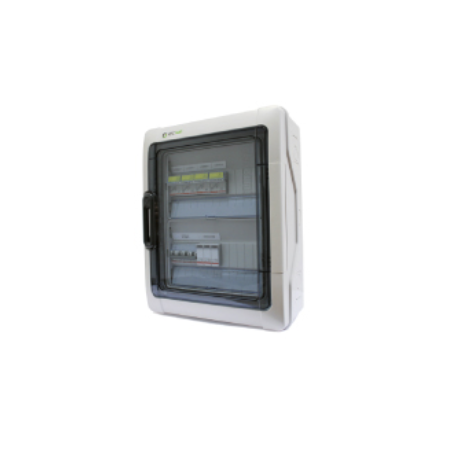

PV DC Field Combiner Box 4 Strings 1000V 16A QCM4104L
DC Light field box 1000VDC 4 independent strings: 4× 2P fuse holders 16A-1000VDC, 4× isolators 16A, 4× surge arresters, wall-mount PVC IP65.
The QCM4104L is designed to manage four strings of PV modules up to 1000 VDC, with per-string 2P fuse holders (16A/1000VDC fuses), 16A load-break isolators and surge protective devices, in a wall-mount PVC enclosure rated IP65 for both indoor and outdoor installations.
