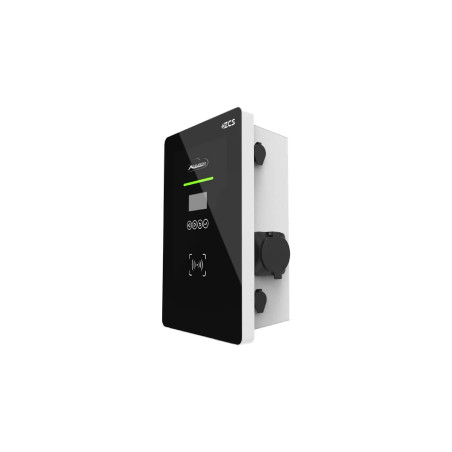

ZCS Azzurro 7kW single-phase charging station for electric vehicles
The ZCS Azzurro 7kW Single-phase Charging Station is a smart and compact solution for domestic and corporate electric vehicle charging, designed by Zucchetti Centro Sistemi to integrate perfectly with photovoltaic systems and ZCS storage systems.
Security policies
(modify it in the Customer Reassurances form)
Shipping policies
(modify it in the Customer Reassurances form)
Return policies
(modify it in the Customer Reassurances form)
Main Features:
Power and compatibility: offers a maximum power of 7.4 kW (32A), compatible with all electric vehicles thanks to the Type 2 connector with shutter.
Intelligent energy management: equipped with the ZCS Predictive Energy Intelligence system, which optimizes energy flows by predicting photovoltaic production and charging needs, for efficient use of available energy.
Monitoring and control: possibility to monitor and control the charging via LCD display, touch keyboard, ZCS Azzurro app, and web portal, with data updates every 5 minutes.
Versatile installation: can be installed on a wall or on a metal stand, with compact dimensions (356 × 221 × 136 mm) and a weight of 3 kg, suitable for both indoor and outdoor environments thanks to the IP54 protection rating.
Advanced safety: integrates protections against over/under voltage, overload, short circuit, leakage currents, lack of ground, overtemperature and undertemperature, compliant with IEC 61851-1:2017 and IEC 62916-2:2016 standards.
Included accessories: supplied with 2 RFID cards for authentication and a MID certified energy meter for precise measurement of the delivered energy.
This wallbox is an ideal choice for those who want efficient, safe charging integrated with the latest energy management technologies.
ZV1-7K
3 Items
New
