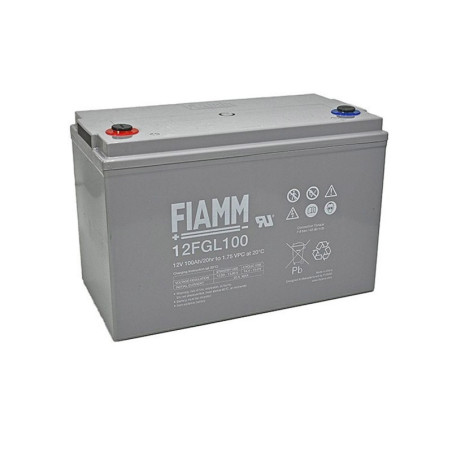

FIAMM AGM Battery 100Ah 12V for photovoltaic solar panels
The FGL series batteries are designed to offer excellent performance with all discharge profiles. The FGL range uses VRLA technology with 99% internal recombination, which means that no maintenance is required for electrolyte topping up during their operational life. The self-discharge rate of less than 2% per month ensures long storage times without recharging. The FGL range is designed for applications that require a high level of reliability and safety, and they are suitable for use in combination with a 12V photovoltaic system.
Security policies
(modify it in the Customer Reassurances form)
Shipping policies
(modify it in the Customer Reassurances form)
Return policies
(modify it in the Customer Reassurances form)
The FGL series AGM batteries are ideal for mobile and stationary applications such as: - Storage systems for renewable energies - Emergency and light signaling systems - Security & alarm systems - Industrial & process continuity - UPS applications - Light traction (electric bicycles and electric scooters) TECHNICAL SPECIFICATIONS Capacity: 100Ah Nominal Voltage: 12V Weight: 32.8 Kg Dimensions (mm): 329 x 172 x 214 (Width x Depth x Height) GENERAL FEATURES Optimized for discharges up to 20 hours 5-year design life in standby at controlled ambient temperature VRLA AGM and gas recombination technology, with 99% of internal gases recombined Maintenance-free; no refilling Non-hazardous for air/sea/rail/road transport 100% Recyclable TECHNICAL AND CONSTRUCTION FEATURES Grids: obtained by gravity casting with highly pure lead calcium-tin alloy Separators: electrolyte completely absorbed in ultra-high microporosity glass fiber separators (AGM) Terminal connections: threaded inserts ensuring high conductivity and easy installation Polar seals: high reliability polar passages, specially designed to prevent acid infiltration over a wide temperature range One-way safety valves: allow excess gases to escape in case of overcharge Flame arrestor: prevents sparks or flames from entering the battery Container and lid: designed with thick ABS walls for high mechanical resistance Self-discharge: < 2% per month at 20°C, allows 6 months of storage without recharging USAGE AND INSTALLATION PRECAUTIONS - Install the batteries away from any heat sources and flames - Install the batteries in non-humid places and protect them from any surface deposits - Do not install the batteries in hermetically sealed environments or very close to open flames or sparks as gases may be emitted - When mounting multiple batteries, it is preferable to leave space between them to provide cooling and ventilation - When charging with a mains charger, the current ripple must be less than 0.1A R.M.S. - Do not use gasoline, diesel, or other types of solvent to clean the containers - In case of internal acid leakage due to casing rupture, avoid contact with hands as sulfuric acid is present inside - In case of contact, wash hands thoroughly with water and pay maximum attention to the eyes - Do not connect batteries of different capacities or significantly different "production ages" in series or parallel - Periodically check for wear and/or cleanliness - Batteries should not be disposed of with regular waste but returned to a recycling center Reference Standards - IEC 60896 Part 21 - testing methods for valve-regulated batteries (VRLA) - IEC 60896 Part 22 - VRLA requirements - UL Certified - Eurobat 3-5 years commercial standard FIAMM Certifications - ISO 9001 Quality Management System - ISO 14001 Environmental Management System - OHSAS 18001 - Occupational Health and Safety
12FGL100
