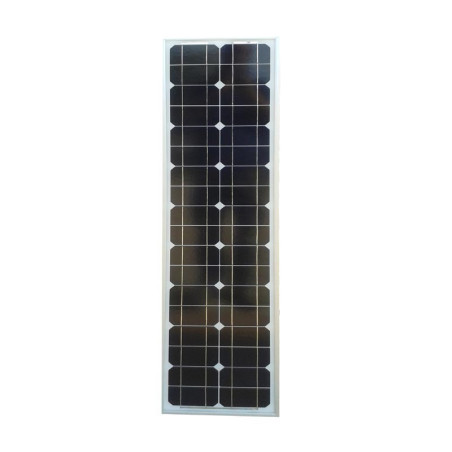

Slim 50W 12V Photovoltaic Panel - Camper and Nautical
50W Photovoltaic Panel with an elongated shape that makes it ideal for installation on campers and boats that do not have much space.
Sunergy photovoltaic modules are made with high-efficiency monocrystalline silicon cells.
The photovoltaic module is of the glass-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology, entirely MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA and protected with a high-transparency tempered glass sheet on the front and a white tedlar sheet on the back. The entire assembly is enclosed in a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm low-iron tempered glass and a textured surface to ensure maximum efficiency even in mobile applications such as campers or marine use, where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
|
Maximum Power (Pmax) |
50 Wp |
|
Short Circuit Current (Isc) |
2.80 A |
|
Open Circuit Voltage (Voc) |
22.72 V |
|
MPP current (Imax) |
2.64 A |
|
Maximum Power Point Voltage (Vmax) |
18.97 V |
|
Insulation voltage |
600 Volts |
|
NOCT (800W/m2-20°C - AM 1.5) |
47°C |
PHYSICAL CHARACTERISTICS:
|
Dimensions (mm) |
1200 x 300 x 35 |
|
Weight |
5.3 kg |
CONSTRUCTION FEATURES:
|
Place of production module |
Italy |
|
Cell type |
Monocrystalline |
|
Number of cells |
36 |
|
Front side (Front) |
4 mm tempered glass |
|
Rear side (Back) |
Multilayer Tedlar |
|
Encapsulation |
EVA |
|
Frame |
Anodized aluminum |
|
Junction Box |
IP65-2 bypass diodes |
