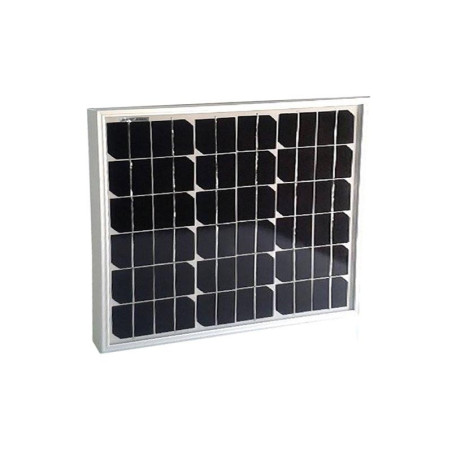

Photovoltaic panel 25W [50x36cm]
High-efficiency photovoltaic module, made in Italy and guaranteed for 10 years.
Recommended for: maintaining the charge of camper and boat batteries, creating a light point or courtesy light, illuminating signs, flashing lights, and road signage.
The photovoltaic module is of the glass-tedlar type, resulting from a careful selection of the best materials available on the market and an advanced manufacturing technology, entirely MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA and protected with a highly transparent tempered glass sheet on the front and a white tedlar sheet on the back.
Everything is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm low-iron tempered glass with a textured surface, to ensure maximum performance even in mobile applications such as campers or boating where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 25 Wp
Short Circuit Current (Isc) 1.40 A
Open Circuit Voltage (Voc) 22.70 V
MPP Current (Imax) 1.32 A
MPP Voltage (Vmax) 19.00 V
Insulation Voltage 600 Volt
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 500 x 360 x 35
Weight 2.9 Kg
CONSTRUCTIVE CHARACTERISTICS:
Module Production Location Italy
Cell Type Monocrystalline
Number of Cells 36
Front Side 4 mm Tempered Glass
Back Side Multilayer Tedlar
Encapsulation EVA
Frame Anodized Aluminum
Junction Box IP65-1 bypass diode
