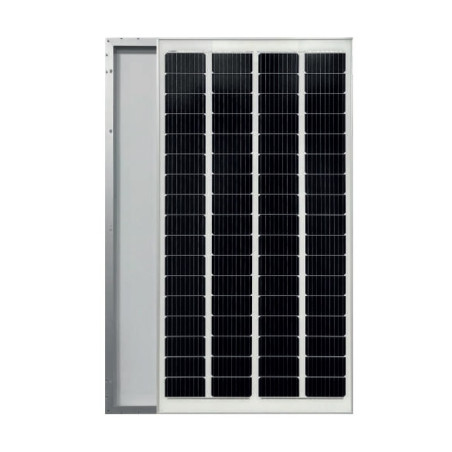

FU200M - REVAMPING - SILK PRO Photovoltaic Module 200W - Dimensions 1580x808 mm
High-efficiency monocrystalline photovoltaic module of 200 Watts with a 35mm anodized aluminum frame and 3.2mm high transmittance tempered glass.
• Monocrystalline PERC half-cut cells
• Module current of 5.5 Amperes
• Mechanically and electrically compatible for renovation and upgrade projects
• Necessary modifications minimized in case of module replacement
• Lower risk of micro-cracks and hot spots
• Less shading and more reflected light on the cell thanks to the cylindrical ribbon
Warranties: 25-year performance warranty and 15-year product warranty
- Photovoltaic modules made with high-efficiency monocrystalline silicon cells
- Maximum power guarantee thanks to always positive tolerances 0 - 5 Wp
- High resistance to wind loads (2400 Pascal) and snow (5400 Pascal)
- 3.2 mm tempered glass to ensure the best balance between maximum mechanical strength and transparency
- Maximum hail impact resistance (83 km/h)
- Self-cleaning, anti-reflective, prevents dust deposition, and water-repellent
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax)200 Wp
MPP Current (Imax)5.16 A
MPP Voltage (Vmax)38.77V
Short Circuit Current (Isc)5.54 A
Open Circuit Voltage (Voc)45.98 V
Insulation Voltage1000 Volt
NOCT (800W/m2-20°C - AM 1.5)45°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm)1580 x 808 x 35
Weight 14 Kg
CONSTRUCTION CHARACTERISTICS:
Number of Cells72
Front Side3.2 mm tempered glass
Rear SidePolyester multilayer
EncapsulationEVA
FrameAnodized aluminum
Junction BoxIP65-approved with 6 bypass diodes
Cables and connectorsLength 900 mm with MC4 compatible connectors
