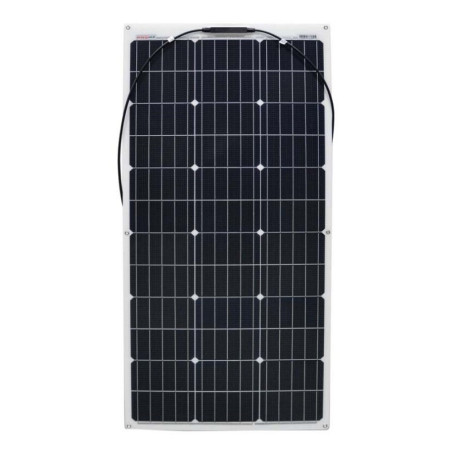

Flexible solar panel for boat 200W 24V Mono dimensions 154x68cm
The FLEX200M24V photovoltaic module is equipped with a high degree of efficiency.
This series is particularly suitable for all applications where installation space is limited (such as campers and boats) but at the same time allows for high production capacity.
Photovoltaic modules are made with high-efficiency monocrystalline silicon cells.
The photovoltaic module is of the ETFE-tedlar type, the result of a meticulous selection of the best materials available on the market and advanced processing technology, completely MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA, with an upper layer of a plastic polymer called ETFE, highly resistant to corrosion and damage from atmospheric agents, to the extent that it can be described as self-healing.
The FLEX series modules are designed to ensure maximum performance even in mobile applications such as campers or nautical (ETFE), where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax)200 Wp
Short Circuit Current (Isc)5.70 A
Open Circuit Voltage (Voc)45.40 V
MPP Current (Imax)5.15 A
MPP Voltage (Vmax)38.50 V
Insulation Voltage600 Volts
NOCT (800W/m2-20°C - AM 1.5)47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm)1540 x 680 x 2
Weight 2.5 Kg
CONSTRUCTIVE CHARACTERISTICS:
Module production locationItaly
Cell typeMonocrystalline
Number of cells72
Front side (Front)Transparent ETFE
Back side (Back)Multilayer Tedlar
EncapsulationEVA
FrameNone
Junction BoxIP65-2 bypass diodes on the front
