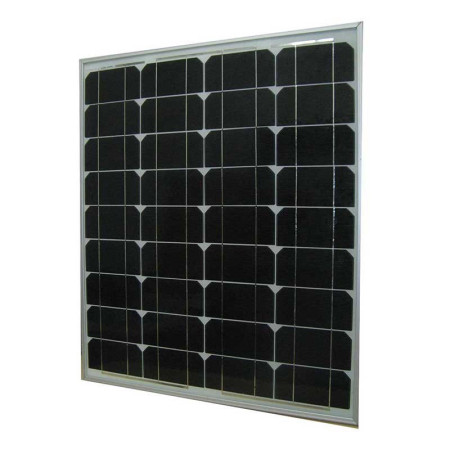

80W Monocrystalline Photovoltaic Panel MADE IN ITALY
High-efficiency 80W photovoltaic module, with a 35mm anodized aluminum frame and high transmittance tempered glass, entirely produced in Italy and guaranteed for 10 years.
Recommended for maintaining the charge of service batteries in campers and boats, creating up to 5 light points, illuminating signs, and street lighting.
Photovoltaic modules are made with high-efficiency monocrystalline silicon cells.
The photovoltaic module is of the glass-tedlar type, the result of a careful selection of the best materials available on the market and an advanced processing technology totally MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA and protected with a highly transparent tempered glass sheet on the front and a white tedlar sheet on the back.
The whole is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm low iron content, textured surface tempered glass to ensure maximum performance even in mobile applications such as RVs or marine where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 80 Wp
Short Circuit Current (Isc) 4.55 A
Open Circuit Voltage (Voc) 22.40 V
MPP Current (Imax) 4.20 A
MPP Voltage (Vmax) 19.20 V
Insulation Voltage 600 Volt
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 780 x 665 x 35
Weight 6.8 Kg
CONSTRUCTIVE CHARACTERISTICS:
Module production location Italy
Type of cells Monocrystalline
Number of cells 36
Front side 4 mm tempered glass
Back side Multilayer Tedlar
Encapsulation EVA
Frame Anodized aluminum
Junction Box IP65-2 bypass diodes
