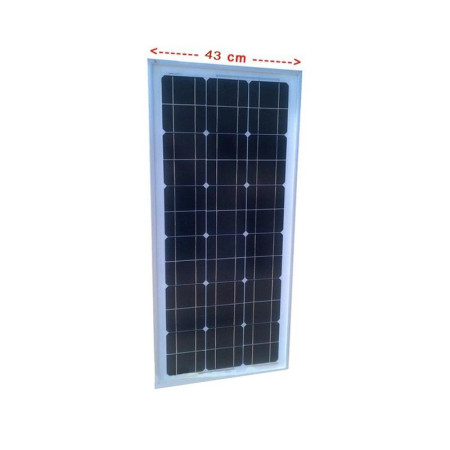

75 Watt boat photovoltaic panel, Width 43 cm MADE IN ITALY
Lightweight and compact, this 75W panel with a width of only 45cm is ideal in case of space issues as it has a reduced width compared to standard panels.
Photovoltaic panel dimensions: 430mm x 1100mm x 35mm
Photovoltaic modules are made with high-efficiency monocrystalline silicon cells.
The photovoltaic module is a glass-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology, entirely MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA and protected with a sheet of high-transparency tempered glass on the front and a sheet of white tedlar on the back.
Everything is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm low-iron content textured surface tempered glass to ensure maximum efficiency even in mobile applications such as campers or marine, where modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 75 Wp
Short Circuit Current (Isc) 4.65 A
Open Circuit Voltage (Voc) 20.75 V
MPP Current (Imax) 4.30 A
MPP Voltage (Vmax) 17.50 V
Insulation Voltage 600 Volt
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
NOCT (800W/m2-20°C - AM 1.5) 47 °C
Dimensions (mm) 1100 x 430 x 35
Weight 6.7 Kg
CONSTRUCTIVE CHARACTERISTICS:
Module production location Italy
Cell type Monocrystalline
Cell size (mm) 125 x 93
Number of cells 33
Front side (Front) 4 mm tempered glass
Back side (Back) Multilayer tedlar
Encapsulation EVA
Frame Anodized aluminum
Junction Box IP65-2 bypass diodes
