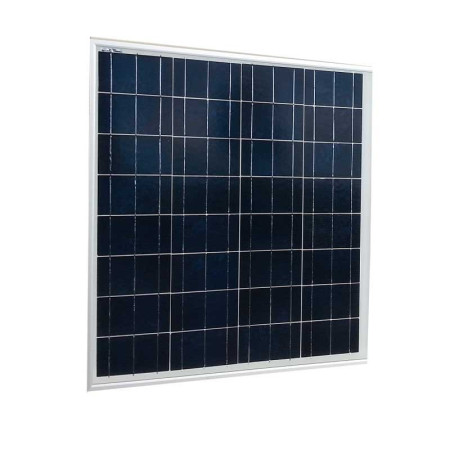

70W Polycrystalline Photovoltaic Panel MADE IN ITALY
High-efficiency photovoltaic module of 70 Watts, with a 35mm anodized aluminum frame and high transmittance tempered glass, entirely produced in Italy and guaranteed for 10 years.
Photovoltaic modules are made with high-efficiency polycrystalline silicon cells.
The photovoltaic module is of the glass-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology fully MADE IN ITALY.
The cells are encapsulated under vacuum between two sheets of EVA and protected with a highly transparent tempered glass plate on the front and a white tedlar sheet on the back.
The entire module is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm low-iron, textured surface tempered glass to ensure maximum efficiency even in mobile applications such as campers or marine environments where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 70 Wp
Short Circuit Current (Isc) 4.18 A
Open Circuit Voltage (Voc) 22.25 V
MPP Current (Imax) 3.93 A
MPP Voltage (Vmax) 18.20 V
Insulation Voltage 600 Volts
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 700 x 665 x 35
Weight 6.8 Kg
CONSTRUCTIVE CHARACTERISTICS:
Module production location Italy
Cell type Polycrystalline
Number of cells 36
Front side 4 mm tempered glass
Back side Multilayer tedlar
Encapsulation EVA
Frame Anodized aluminum
Junction Box IP65-2 bypass diodes
