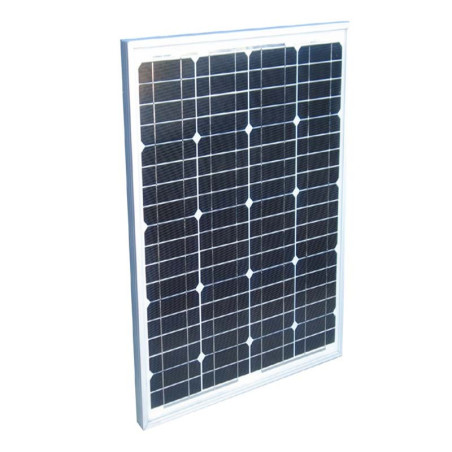

70W 24V Polycrystalline Photovoltaic Panel
High-efficiency photovoltaic module of 70 Watts 24V Polycrystalline, with a 35mm anodized aluminum frame and high transmittance tempered glass.
This photovoltaic module is particularly suitable for creating systems that operate at 24 Volts without the need for transformers or inverters, such as in the case of motors for automatic gates, intercoms, etc.
Photovoltaic modules are made with high-efficiency polycrystalline silicon cells.
The photovoltaic module is of the glass-tedlar type, the result of a careful selection of the best materials available on the market and advanced manufacturing technology, completely MADE IN ITALY.
The cells are vacuum encapsulated between two EVA sheets and protected with a high-transparency tempered glass sheet on the front and a white tedlar sheet on the back.
The whole is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm tempered glass with low iron content and a textured surface, to ensure maximum performance even in mobile applications such as camper vans or boating, where modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 70 Wp
Short Circuit Current (Isc) 2.09 A
Open Circuit Voltage (Voc) 44.50 V
MPP Current (Imax) 1.97 A
MPP Voltage (Vmax) 36.40 V
Insulation Voltage 600 Volts
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 780 x 665 x 35
Weight 6.8 Kg
CONSTRUCTION CHARACTERISTICS:
Module production location Italy
Number of cells 72
Front side (Front) 4mm tempered glass
Back side (Back) Multilayer tedlar
Encapsulation EVA
Frame Anodized aluminum
Junction Box IP65-2 bypass diodes
