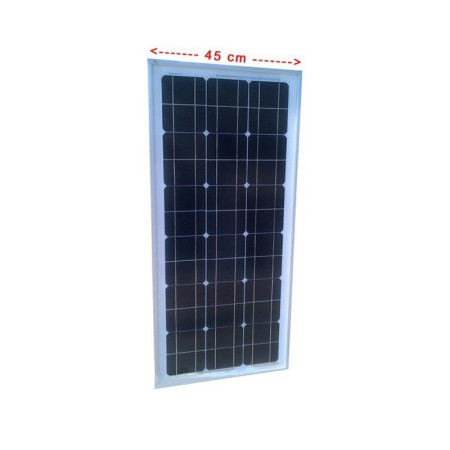

60W Monocrystalline Photovoltaic Panel - Width 45cm MADE IN ITALY

Photovoltaic modules are made with high-efficiency monocrystalline silicon cells.

The photovoltaic module is of the glass-tedlar type, resulting from a careful selection of the best materials available on the market and an advanced manufacturing technology completely MADE IN ITALY.

The cells are vacuum encapsulated between two EVA sheets and protected with a high-transparency tempered glass sheet on the front and a white tedlar sheet on the back.

Everything is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.

The SYM series modules are made with 4mm low-iron content tempered glass and a textured surface, to ensure maximum performance even in mobile applications such as campers or nautical use, where the modules are often installed with non-ideal tilt and azimuth.

ELECTRICAL CHARACTERISTICS:

Maximum Power (Pmax)60 Wp

Short Circuit Current (Isc)3.30 A

Open Circuit Voltage (Voc)22.60 V

MPP Current (Imax)3.16 A

MPP Voltage (Vmax)19.0 V

Insulation Voltage600 Volt

NOCT (800W/m2-20°C - AM 1.5)47°C

PHYSICAL CHARACTERISTICS:

NOCT (800W/m2-20°C - AM 1.5) 47 °C

Dimensions (mm)1000 x 450 x 35

Weight 5.5 Kg

CONSTRUCTIVE CHARACTERISTICS:

Module production locationItaly

Cell typeMonocrystalline

Cell size (mm)125 x 75

Number of cells36

Front side4 mm tempered glass

Back sideMultilayer Tedlar

EncapsulationEVA

FrameAnodized aluminum

Junction BoxIP65-2 bypass diodes
