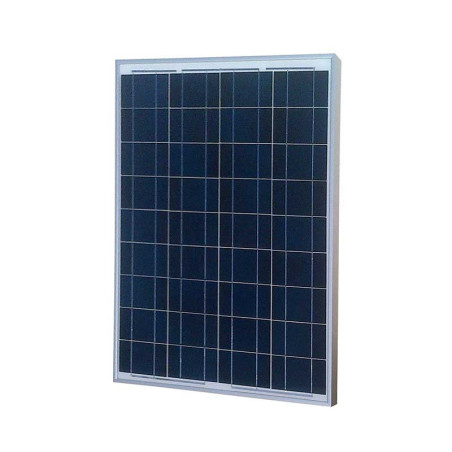

50W 12V Polycrystalline Photovoltaic Panel
High-efficiency photovoltaic panel, made in Italy and guaranteed for 10 years.
Choose this panel for: powering one light point, courtesy lights, signs or road signal flashers, or as a battery maintenance system for camper and boat services during long periods of vehicle inactivity.
Photovoltaic modules are made with high-efficiency monocrystalline silicon cells.
The photovoltaic module is of the glass-tedlar type, the result of a careful selection of the best materials available on the market and advanced processing technology, totally MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA and protected with a high-transparency tempered glass sheet on the front and a white tedlar sheet on the back.
The whole is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm low-iron tempered glass and a textured surface, to ensure maximum performance even in mobile applications such as campers or nautical where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 50 Wp
Short Circuit Current (Isc) 2.94 A
Open Circuit Voltage (Voc) 21.60 V
MPP Current (Imax) 2.72 A
MPP Voltage (Vmax) 18.40 V
Insulation Voltage 600 Volts
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 665 x 553 x 35
Weight 4.9 Kg
CONSTRUCTIVE CHARACTERISTICS:
Module production location Italy
Cell type Polycrystalline
Number of cells 36
Front side 4 mm tempered glass
Back side Multilayer tedlar
Encapsulation EVA
Frame Anodized aluminum
Junction Box IP65-2 bypass diodes
