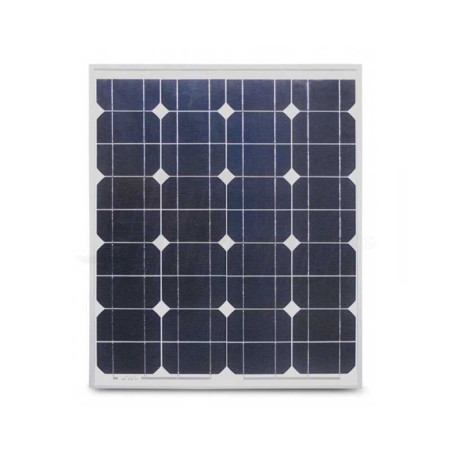

50W 12V Monocrystalline Photovoltaic Panel
Ultra-high efficiency photovoltaic panel, made in Italy and guaranteed for 10 years.
This panel is ideal for powering LED spotlights, 1 or 2 light points, LED street lamps, signs and road signs, small advertising signs.
Photovoltaic modules are made with high-efficiency monocrystalline silicon cells.
The photovoltaic module is of the glass-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology, completely MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA and protected with a highly transparent tempered glass sheet on the front and a white tedlar sheet on the back.
The whole is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm low-iron content and textured surface tempered glass, to ensure maximum efficiency even in mobile applications such as campers or nautical uses where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 50 Wp
Short Circuit Current (Isc) 2.80 A
Open Circuit Voltage (Voc) 22.72 V
MPP Current (Imax) 2.64 A
MPP Voltage (Vmax) 18.97 V
Insulation Voltage 600 Volt
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 665 x 553 x 35
Weight 4.9 Kg
CONSTRUCTION CHARACTERISTICS:
Module Production Location Italy
Cell Type Monocrystalline
Number of Cells 36
Front Side 4 mm Tempered Glass
Back Side Multilayer Tedlar
Encapsulation EVA
Frame Anodized Aluminum
Junction Box IP65-2 Bypass Diodes
