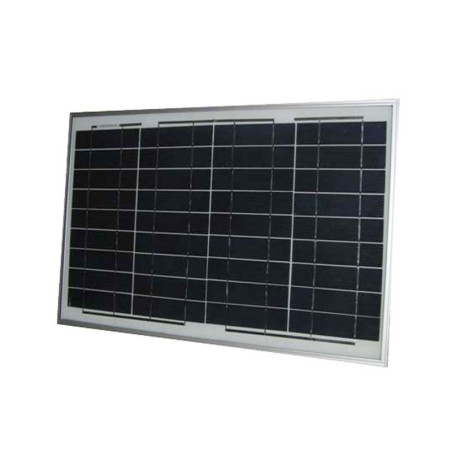

40W 12V Polycrystalline Photovoltaic Solar Panel
High-efficiency photovoltaic panel, guaranteed for 10 years.
Lightweight and compact, this photovoltaic module can be used to power 1 or 2 light points, courtesy lights, signs, or road signal flashers, or as a charge maintenance system to prevent the problem of battery self-discharge in campers and boats during long periods of vehicle inactivity.
The photovoltaic module is of the glass-tedlar type, resulting from a careful selection of the best materials available on the market and advanced manufacturing technology, completely MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA and protected with a high-transparency tempered glass sheet on the front and a white tedlar sheet on the back.
Everything is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm low-iron tempered glass and a textured surface, to ensure maximum performance even in mobile applications such as campers or marine applications, where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 40 Wp
Short Circuit Current (Isc) 2.65A
Open Circuit Voltage (Voc) 19.8 V
MPP Current (Imax) 2.50 A
MPP Voltage (Vmax) 16.20 V
Insulation Voltage 600 Volt
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 450 x 665 x 35
Weight 6.3 Kg
CONSTRUCTIVE CHARACTERISTICS:
Module production location Italy
Cell type Polycrystalline
Number of cells 32
Front side (Front) 4 mm tempered glass
Back side (Rear) Multilayer tedlar
Encapsulation EVA
Frame Anodized aluminum
Junction Box IP65-2 bypass diodes
