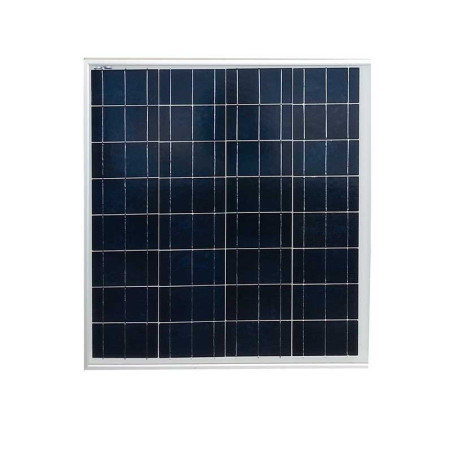

40 Watt Polycrystalline Photovoltaic Panel SQUARE 50x50cm
40W 12V photovoltaic panel with very high efficiency, made in Italy and guaranteed for 10 years with DIMENSIONS 50X50 cm.
Its uniqueness lies in its shape: being square makes it more manageable and compact, and it also appears more aesthetically pleasing.
Choose this panel for: creating a light point, for signs or road signal flashers, or as a battery maintenance system for campers and boats.
Another interesting use could be as an integrated element in self-powered systems (radio stations, weather stations, surveillance systems).
Photovoltaic modules are made with polycrystalline silicon cells with an efficiency of 18%.
The photovoltaic module is of the glass-tedlar type, the result of a careful selection of the best materials available on the market and advanced processing technology, completely MADE IN ITALY.
The cells are encapsulated in a vacuum between two sheets of EVA and protected with a highly transparent tempered glass sheet on the front and a white tedlar sheet on the back.
Everything is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm low iron content tempered glass and a textured surface to ensure maximum performance even in mobile applications such as campers or marine environments where modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 40 Wp
Short Circuit Current (Isc) 2.32A
Open Circuit Voltage (Voc) 22.33 V
MPP Current (Imax) 2.10 A
MPP Voltage (Vmax) 19.00 V
Insulation Voltage 600 Volts
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 500 x 500 x 35
Weight 6.8
CONSTRUCTIVE CHARACTERISTICS:
Module production location Italy
Cell type Polycrystalline
Number of cells 36
Front side 4mm tempered glass
Rear side Multilayer tedlar
Encapsulation EVA
Frame Anodized aluminum
Junction Box IP65-2 bypass diodes
