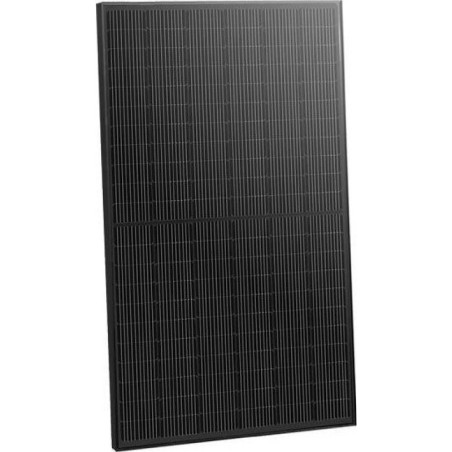

370W Black Frame LDK Solar Panel
The 370W LDK SOLAR MODULE is a monocrystalline solar module with a power of 370Wp and an efficiency rate of 20.20%. This module is made with half-cell technology, which allows for greater energy on a reduced surface area.
The module features a black frame and a white backsheet.
ELECTRICAL DATA
Nominal Max. Power (Pmax): 370W
Opt. Operating Voltage (Vmp): 34.78 V
Opt. Operating Current (Imp): 10.64 A
Open Circuit Voltage (Voc): 41.77 V
Short Circuit Current (Isc): 11.24 A
Module Efficiency: 20.20 %
MECHANICAL DATA
Cell Type: Monocrystalline
No. of cells: 120
Dimensions: 1755x1038x30mm
Weight: 21.1 kg
Front cover in 3.2 mm tempered glass
Frame Anodized aluminum alloy J-Box IP68, 3 bypass diodes Cable 4.0 mm² (IEC), 12 AWG (UL) Cable length (including connector)
TEMPERATURE CHARACTERISTICS
Temperature coefficient (Pmax) – 0.365 % / ˚C
Temperature coefficient (Voc) – 0.270 % / ˚C
Temperature coefficient (Isc) + 0.038 % / ˚C
Performance warranty of the modules
Performance degradation in the first year not exceeding 2%
Performance degradation in the years following the first, not exceeding 0.55% per year
Product warranty
12 YEARS
