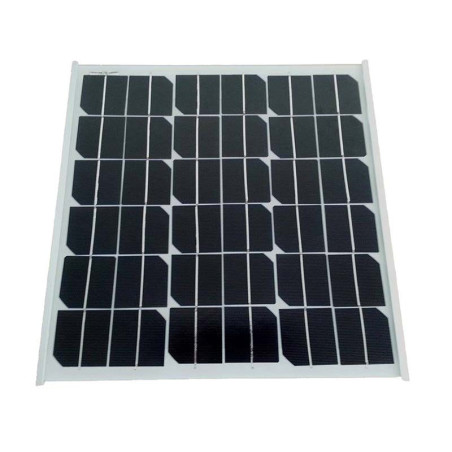

25W ULTRA-THIN Photovoltaic Panel 42x42cm
Ultrathin photovoltaic panel with very high efficiency, made in Italy and guaranteed for 5 years.
This photovoltaic module is equipped with a small aluminum frame that makes it thinner compared to classic modules of the same size.
Recommended for: small photovoltaic systems, solar energy experiments.
The photovoltaic module is of the glass-tedlar type, the result of a careful selection of the best materials available on the market and advanced processing technology, completely MADE IN ITALY.
The cells are encapsulated under vacuum between two sheets of EVA and protected with a highly transparent tempered glass sheet on the front and a white tedlar sheet on the back. To make the panel thin, the classic frame has not been applied, but simply a 6mm thick aluminum border, allowing the installation of the panel even in specific conditions of limited space.
The SYM series modules are made with 4mm low-iron tempered glass with a textured surface, to ensure maximum efficiency even in mobile applications such as campers or boating where the modules are often installed with non-ideal tilt and azimuth.
These ULTRA-THIN photovoltaic modules have no frame but a simple "U" shaped aluminum profile with a thickness of 8mm on two sides of the panel.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 25 Wp
Short Circuit Current (Isc) 1.40 A
Open Circuit Voltage (Voc) 19.36 V
MPP Current (Imax) 0.65 A
MPP Voltage (Vmax) 17.6 V
Insulation Voltage 600 Volts
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 420 x 420 x 8
Weight 2 Kg
CONSTRUCTIVE CHARACTERISTICS:
Cell Type Monocrystalline
Front Side 4 mm Tempered Glass
Rear Side Multilayer Tedlar
Encapsulation EVA
Frame Ultrathin aluminum profile on 2 sides
Junction Box IP65
