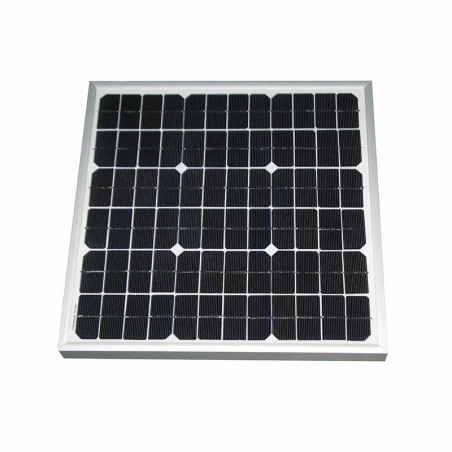

25W 24V Monocrystalline Photovoltaic Panel
Photovoltaic module high efficiency of 25 Watt 24V Monocrystalline, with a 35mm anodized aluminum frame and high transmittance tempered glass.
This photovoltaic module is particularly suitable for creating systems that operate at 24 Volts without the need for transformers or inverters, as in the case of motors for automatic gates, intercoms, etc.
The photovoltaic module is of the glass-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology, completely MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA and protected with a high-transparency tempered glass plate on the front and a white tedlar sheet on the back.
Everything is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm low iron content, textured surface tempered glass, to ensure maximum performance even in mobile applications such as campers or boating, where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 25Wp
Short Circuit Current (Isc) 0.70 A
Open Circuit Voltage (Voc) 45.40 V
MPP Current (Imax) 0.66 A
MPP Voltage (Vmax) 38 V
Insulation Voltage 600 Volts
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 420 x 420 x 35
Weight 4.8 Kg
CONSTRUCTIVE CHARACTERISTICS:
Module production location Italy
Number of cells 72
Front side 4 mm tempered glass
Back side Multilayer tedlar
Encapsulation EVA
Frame Anodized aluminum
Junction Box IP65-2 bypass diodes
