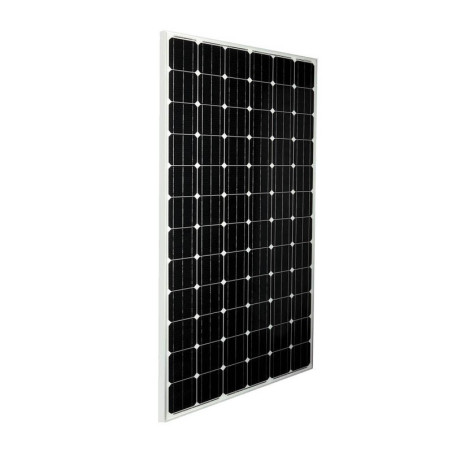

220W 24V Monocrystalline Photovoltaic Solar Panel - Dimensions 1570x810x35 mm

The photovoltaic module is of the glass-tedlar type, the result of a careful selection of the best materials available on the market and advanced processing technology, all MADE IN ITALY.

The cells are vacuum encapsulated between two sheets of EVA and protected with a sheet of highly transparent tempered glass on the front and a white tedlar sheet on the back.

The whole is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.

The SYM series modules are made with 4mm low-iron content tempered glass and a textured surface to ensure maximum performance even in mobile applications such as campers or boating, where the modules are often installed with non-ideal tilt and azimuth.

ELECTRICAL CHARACTERISTICS:

Maximum Power (Pmax) 220 Wp

Short Circuit Current (Isc) 6.05 A

Open Circuit Voltage (Voc) 45.40 V

MPP Current (Imax) 5.85 A

MPP Voltage (Vmax) 38.00 V

Insulation Voltage 600 Volt

NOCT (800W/m2-20°C - AM 1.5) 47°C

PHYSICAL CHARACTERISTICS:

Dimensions (mm) 1570 x 8310 x 35

Weight 13.0 Kg

CONSTRUCTIVE CHARACTERISTICS:

Module production location Italy

Cell type Monocrystalline

Number of cells 72

Front side 4 mm tempered glass

Back side Multilayer tedlar

Encapsulation EVA

Frame Anodized aluminum

Junction Box IP65-2 bypass diodes
