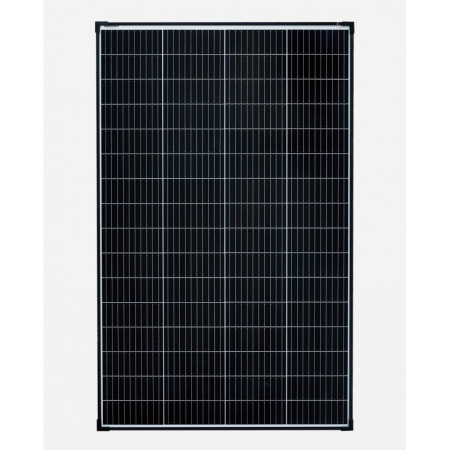

210W 36V Mono Photovoltaic Solar Panel for Boat
The new generation of photovoltaic modules made with 182 mm monocrystalline solar cells, which will be the trend of the near future, will effectively enhance your solar system.
With the improvement of manufacturing technology, the internal resistance of the 182 mm photovoltaic module will be reduced, resulting in less heat loss during energy generation.
Therefore, solar energy will be converted into electricity more efficiently.
The advantage of the 182 mm photovoltaic module will be even more evident with greater sun irradiation and higher ambient temperature.
The new 182 mm photovoltaic module is an excellent choice for the photovoltaic system.
TECHNICAL SPECIFICATIONS:
- Construction with 182 mm monocrystalline PERC cells
- With 10 multi-busbar, less resistance and more stability
- Increase in cell efficiency above 23.1%
- Less space between solar cells and thinner busbar design
- More solid energy generation with the addition of copper and excellent performance in low light conditions
- Reduced area and installation costs
- 2 integrated bypass diodes
- Tempered ESG solar glass surface with weather-resistant coating
- Unique and extra robust frame in anodized aluminum
- 90 cm long solar cable; 2.5 mm² connected with MC-4 connectors
- TÜV certified according to IEC61215, IEC61730 standards
- Plus tolerance warranty (+ 3%), performance warranty up to 10 years at 90% and up to 25 years at 80%
TECHNICAL FEATURES:
- Cells: 64 (4×16)
- Max. power (Pmax): 210W
- Max. voltage (Vmp): 35.8 V
- Max. current (Imp): 5.87A
- Open circuit voltage (Voc): 44.2 V
- Short circuit current (Isc): 6.37A
- Temperature coefficient of Voc: -0.36%/K
- Temperature coefficient of Isc: 0.05%/K
- Power temperature coefficient: -0.44%/k
- Normal operating cell temperature: 44+/-2℃
- Operating temperature: -40~+85℃
- Maximum system voltage: 1000 V DC
- Power tolerance: 0 ~ +3%
- Junction box: Waterproof IP67, 1000VDC
- Bypass diodes: 2 pcs
- Module dimension: 1310x765x35 mm
- Module weight: 11.6 kg
