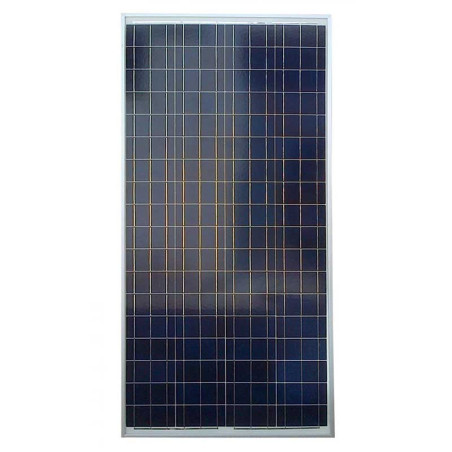

150W 24V Polycrystalline Photovoltaic Panel
150 Watt 24V Polycrystalline high-efficiency photovoltaic module, with a 35mm anodized aluminum frame and high transmittance tempered glass.
This photovoltaic module is particularly suitable for creating systems that operate at 24 Volts without the need for transformers or inverters, such as in the case of motors for automatic gates, intercoms, etc.
Photovoltaic modules are made with high-efficiency polycrystalline silicon cells.
The photovoltaic module is of the glass-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology that is totally MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA and protected with a highly transparent tempered glass sheet on the front and a white tedlar sheet on the back.
Everything is enclosed by a 35mm anodized aluminum frame, equipped with slots on the back for easy installation on suitable supports.
The SYM series modules are made with 4mm low iron content, textured surface tempered glass, to ensure maximum performance even in mobile applications such as campers or boating, where modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 150 Wp
Short Circuit Current (Isc) 4.45 A
Open Circuit Voltage (Voc) 42.85 V
MPP Current (Imax) 4.2 A
MPP Voltage (Vmax) 36.05 V
Insulation Voltage 600 Volt
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 1330 x 665 x 35
Weight 14.2 Kg
CONSTRUCTIVE CHARACTERISTICS:
Module production location Italy
Number of cells 68
Front Side (Front) 4 mm tempered glass
Back Side (Rear) Multilayer tedlar
Encapsulation EVA
Frame Anodized aluminum
Junction Box IP65-2 bypass diodes
