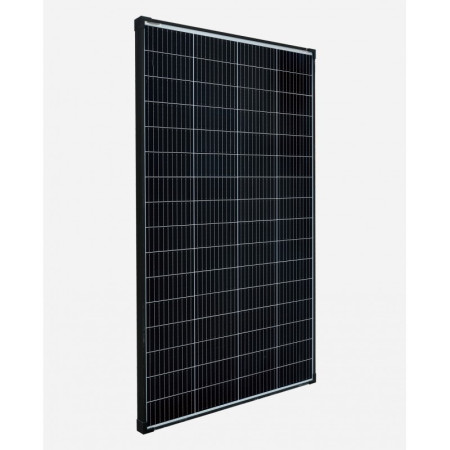

150W 24-36V Monocrystalline Photovoltaic Solar Panel for Boat
The new generation of photovoltaic modules made with 182 mm mono solar cells, which will be the trend of the near future, will effectively enhance your solar system.
TECHNICAL SPECIFICATIONS:
-High-quality solar cells with 5 busbars from Trina Solar
-4 mm² solar cable, 90 cm long with MC4 connector
-Integrated bypass diode: minimized power loss during shading
-TÜV certified
-Tempered solar glass surface with weather-resistant coating
-Unique extra robust frame in anodized aluminum
-Performance warranty up to 10 years at 90% and up to 25 years at 80%
TECHNICAL FEATURES:
-Cells: 66 (3×22)
-Max. power (Pmax): 150W
-Max. voltage (Vmp): 38 V
-Max. current (Imp): 3.95 A
-Open circuit voltage (Voc): 46.0 V
-Short circuit current (Isc): 4.29A
-Temperature coefficient of Voc: -0.36%/K
-Temperature coefficient of Isc: 0.05%/K
-Power temperature coefficient: -0.44%/K
-Normal operating cell temperature: 44+/-2℃
-Operating temperature: -40~+85℃
-Maximum system voltage: 1000 V DC
-Power tolerance: 0 ~ +3%
-Junction box: Waterproof IP67, 1000VDC
-Bypass diodes: 1 pc
-Module size: 1240*670*35 mm
-Module weight: 9.3 kg
Measured under standard test conditions: irradiance 1,000 W/m², air mass spectrum 1.5, temperature 25 ℃. Electrical parameters may vary from -5% to +5%
