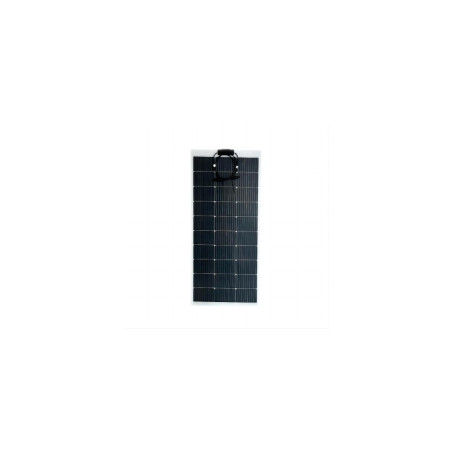

Solmax 180 W 12 V CPC semi-flexible solar panel
180 W CPC semi-flexible monocrystalline module for motorhomes, vans, marine use and weight-sensitive surfaces. Size 126 × 78 × 0.2 cm, weight 3.9 kg; check electrical parameters before system matching.
Solmax 180 W 12 V CPC semi-flexible solar panel turns available space into solar energy with a solution designed for motorhomes, vans, marine use and weight-sensitive surfaces.
A practical choice for designing or upgrading a solar system after checking footprint, cell technology and intended use before purchase.
Why choose it
The 180 W rating provides a clear balance between occupied area and generating capacity. Its CPC semi-flexible monocrystalline construction defines the module’s practical role.
- Rated power: 180 Wp
- Technology: CPC semi-flexible monocrystalline
- Best suited to: motorhomes, vans, marine use and weight-sensitive surfaces
Selection data
| Part number | SZ180CPC |
| Rated power | 180 Wp |
| Technology | CPC semi-flexible monocrystalline |
| Dimensions | 126 × 78 × 0.2 cm |
| Weight | 3.9 kg |
Use and system matching
Before connection, compare open-circuit voltage, maximum-power voltage and module current with controller or inverter limits. Rated power alone does not establish compatibility.
For reliable operation, avoid local shading, size cables correctly and use protection suited to the circuit. A qualified installer can verify mounting, ventilation and wiring.
Frequently asked questions
How much energy can it produce per day?
With 4 equivalent sun hours, theoretical production is about 720 Wh per day before system losses. Irradiance, orientation, temperature and shading affect actual output.
Is a charge controller required?
Battery systems require a controller compatible with voltage, current and battery chemistry. Grid systems instead require correct matching with a suitable inverter.
Can several panels be connected?
Yes, in series or parallel, while respecting the electrical limits of the inverter or controller and correctly sizing cables and protection.
How should it be installed?
Secure it to a suitable surface and provide ventilation where required. Installation and wiring must follow the manual and applicable system rules.
What should I check before buying?
Check available space, operating voltages, current, connectors and compatibility with the inverter, controller and mounting structure.
