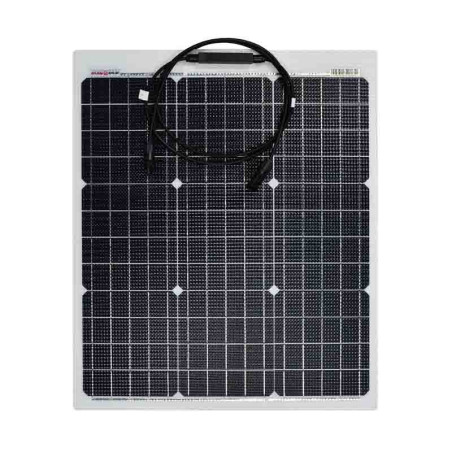

Flexible solar panel for boat 50W 12V size 61x50cm
The FLEX50M12V photovoltaic module is equipped with a high degree of efficiency.
This series is particularly suitable for all those applications where the available space for installation is limited (e.g., campers and boats) but at the same time allows for a high production capacity.
The photovoltaic module is of the ETFE-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology, entirely MADE IN ITALY.
The cells are vacuum encapsulated between two EVA sheets with an upper layer of a plastic polymer called ETFE, highly resistant to corrosion and damage from atmospheric agents, such that it can be defined as self-repairing.
The FLEX series modules are designed to ensure maximum performance even in mobile applications such as campers or marine (ETFE) where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax) 50 Wp
Short Circuit Current (Isc) 2.68 A
Open Circuit Voltage (Voc) 23.4 V
MPP Current (Imax) 2.53 A
MPP Voltage (Vmax) 19.8 V
Insulation Voltage 600 Volts
NOCT (800W/m2-20°C - AM 1.5) 47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 610 x 500 x 2
Weight 2.2 Kg
CONSTRUCTIVE CHARACTERISTICS:
Module Production Location Italy
Cell Type Monocrystalline
Number of Cells 32
Front Side Transparent ETFE
Back Side Multilayer Tedlar
Encapsulation EVA
Frame Absent
Junction Box IP65-2 bypass diodes on the front
