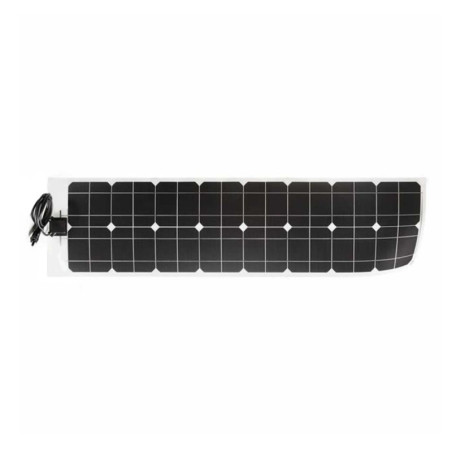

Flexible solar panel for boat 40W 12V dim.100x30cm SLIM
The FLEX40M12V-S photovoltaic module is equipped with a high degree of efficiency.
This series is particularly suitable for all applications where the available installation spaces are limited (such as campers and boats) but at the same time allows for high production capacity.
Sunergy photovoltaic modules are made with high-efficiency monocrystalline silicon cells. The photovoltaic module is of the ETFE-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology, completely MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA with an upper layer of a plastic polymer called ETFE, which is highly resistant to corrosion and damage from weather agents, making it self-repairing.
The FLEX series modules are designed to ensure maximum performance even in mobile applications such as campers or nautical (ETFE), where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
NOCT (800W/m2-20°C - AM 1.5) 47 °C
Maximum Power (Pmax) 40 Wp
Short Circuit Current (Isc) 2.65 A
Open Circuit Voltage (Voc) 19.70 V
MPP Current (Imax) 2.50 A
MPP Voltage (Vmax) 16.20 V
Insulation Voltage 600 Volts
PHYSICAL CHARACTERISTICS:
Dimensions (mm) 1000 x 300 x 1.5
Weight 1.1 Kg
CONSTRUCTIVE CHARACTERISTICS:
Cell Type Monocrystalline
Number of Cells 32
Front Side (Front) Transparent ETFE
Back Side (Back) Multilayer backsheet
Encapsulation EVA
Frame Absent
Junction Box IP65-2 bypass diodes on the front
