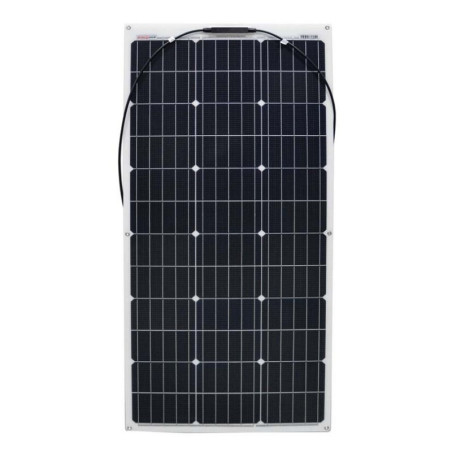

Flexible solar panel for boat 180W 12V Mono dim.140x68cm
The FLEX180M12V photovoltaic module is equipped with a high degree of efficiency.
This series is particularly suitable for all those applications where the available space for installation is limited (e.g. campers and boats) but at the same time allows for high production capacity.
Photovoltaic modules are made with high-efficiency monocrystalline silicon cells.
The photovoltaic module is of the ETFE-tedlar type, resulting from a careful selection of the best materials available on the market and advanced processing technology, completely MADE IN ITALY.
The cells are vacuum encapsulated between two sheets of EVA with an upper layer of a plastic polymer called ETFE, highly resistant to corrosion and damage from atmospheric agents, such that it can be described as self-repairing.
The FLEX series modules are designed to ensure maximum efficiency even in mobile applications such as campers or nautical (ETFE) where the modules are often installed with non-ideal tilt and azimuth.
ELECTRICAL CHARACTERISTICS:
Maximum Power (Pmax)180 Wp
Short Circuit Current (Isc)10.18 A
Open Circuit Voltage (Voc)21.85 V
MPP Current (Imax)9.67 A
MPP Voltage (Vmax)18.90 V
Insulation Voltage600 Volts
NOCT (800W/m2-20°C - AM 1.5)47°C
PHYSICAL CHARACTERISTICS:
Dimensions (mm)1400 x 680 x 2
Weight 2.5 Kg
CONSTRUCTION CHARACTERISTICS:
Module production locationItaly
Cell typeMonocrystalline
Number of cells32
Front side (Front)Transparent ETFE
Back side (Rear)Multilayer Tedlar
EncapsulationEVA
FrameNone
Junction BoxIP65-2 bypass diodes on the front
